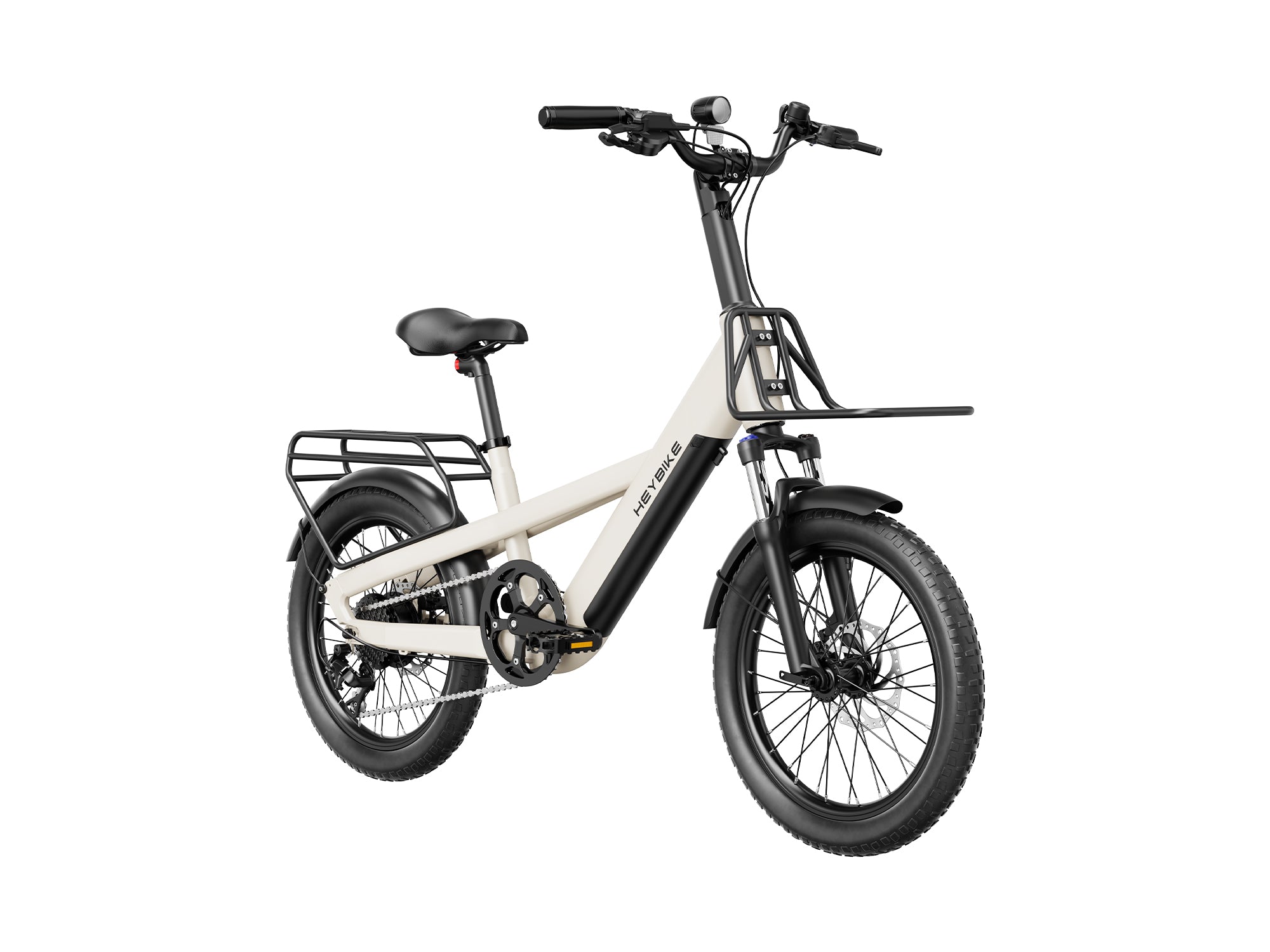

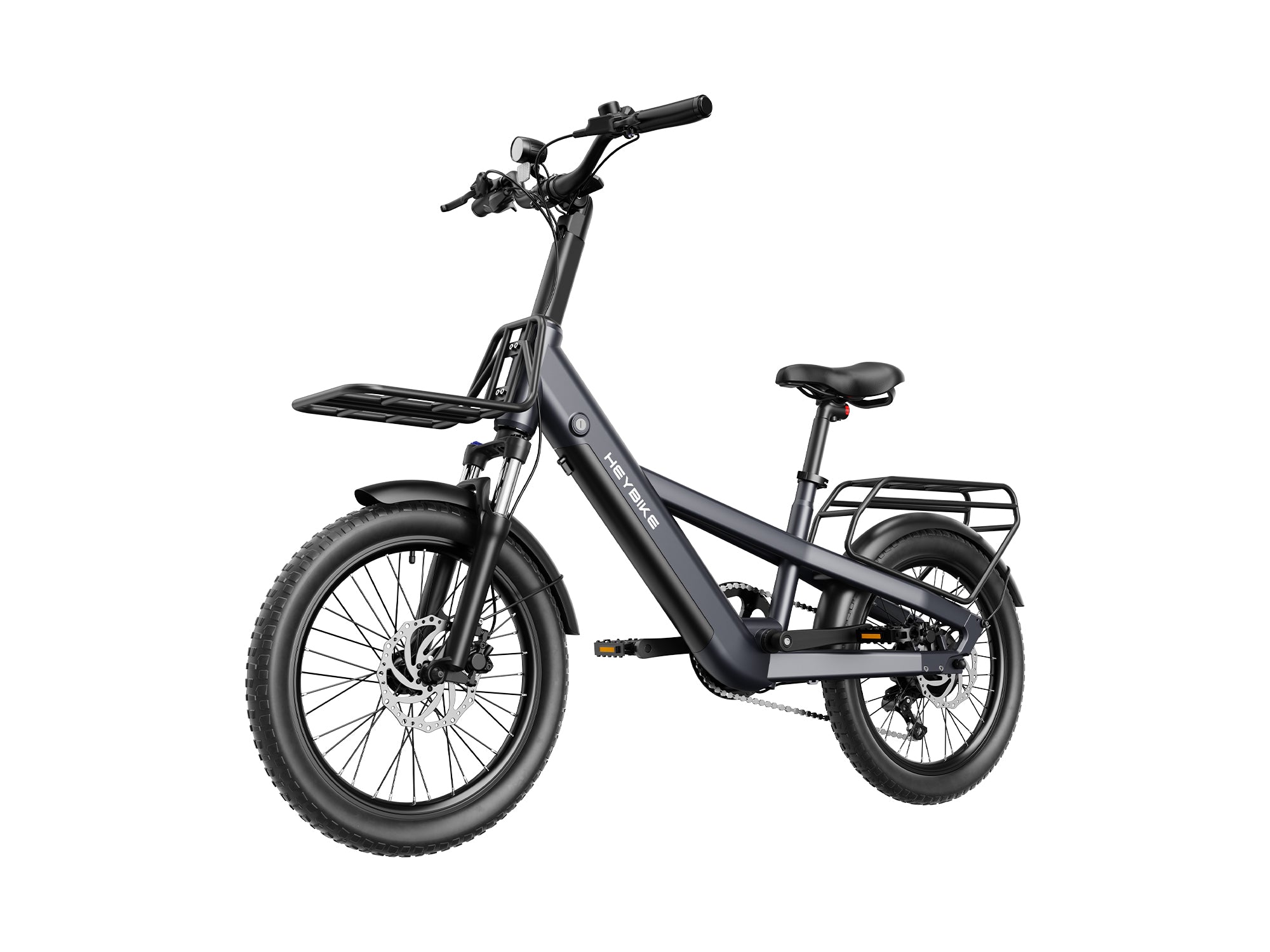

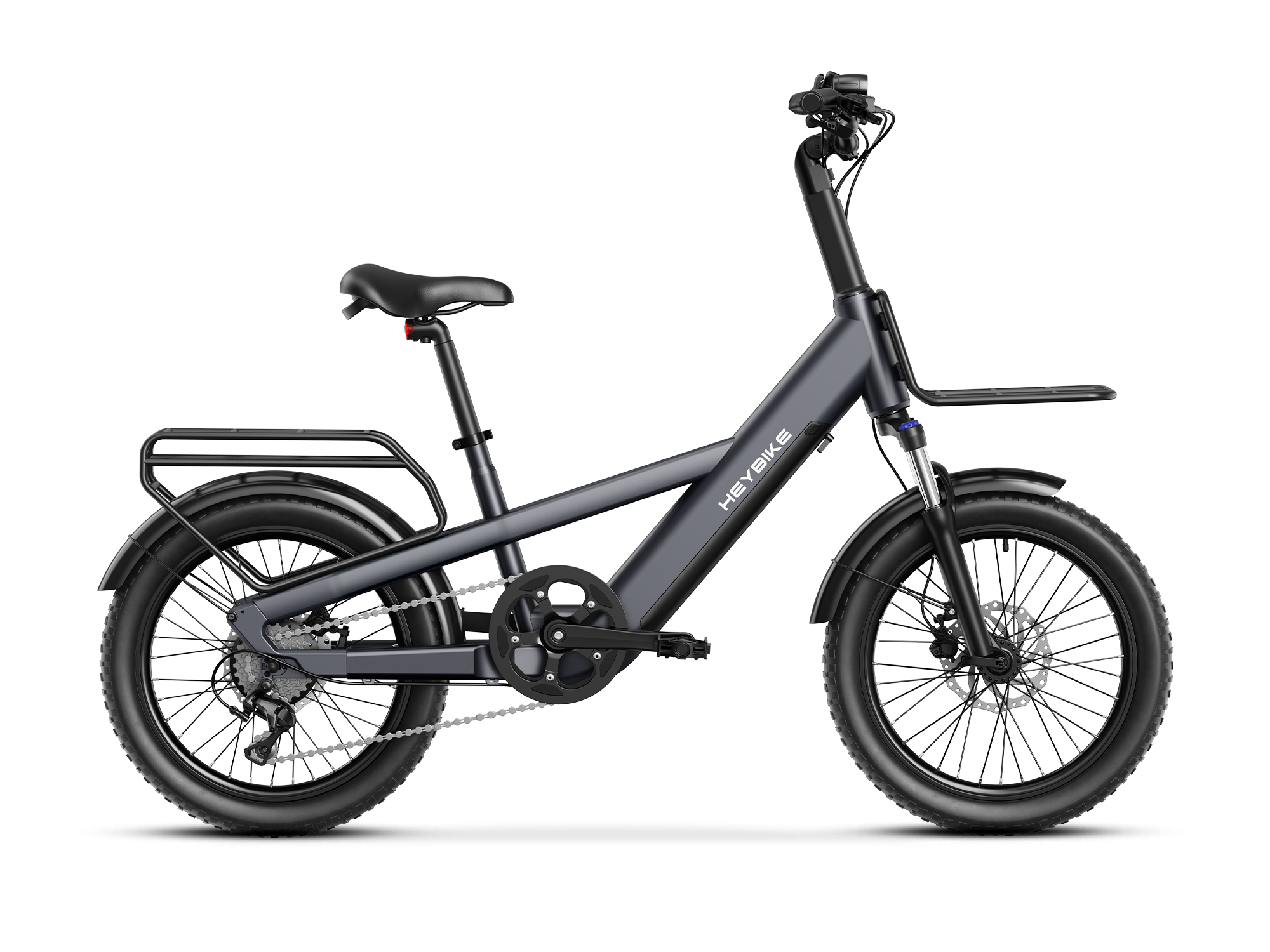

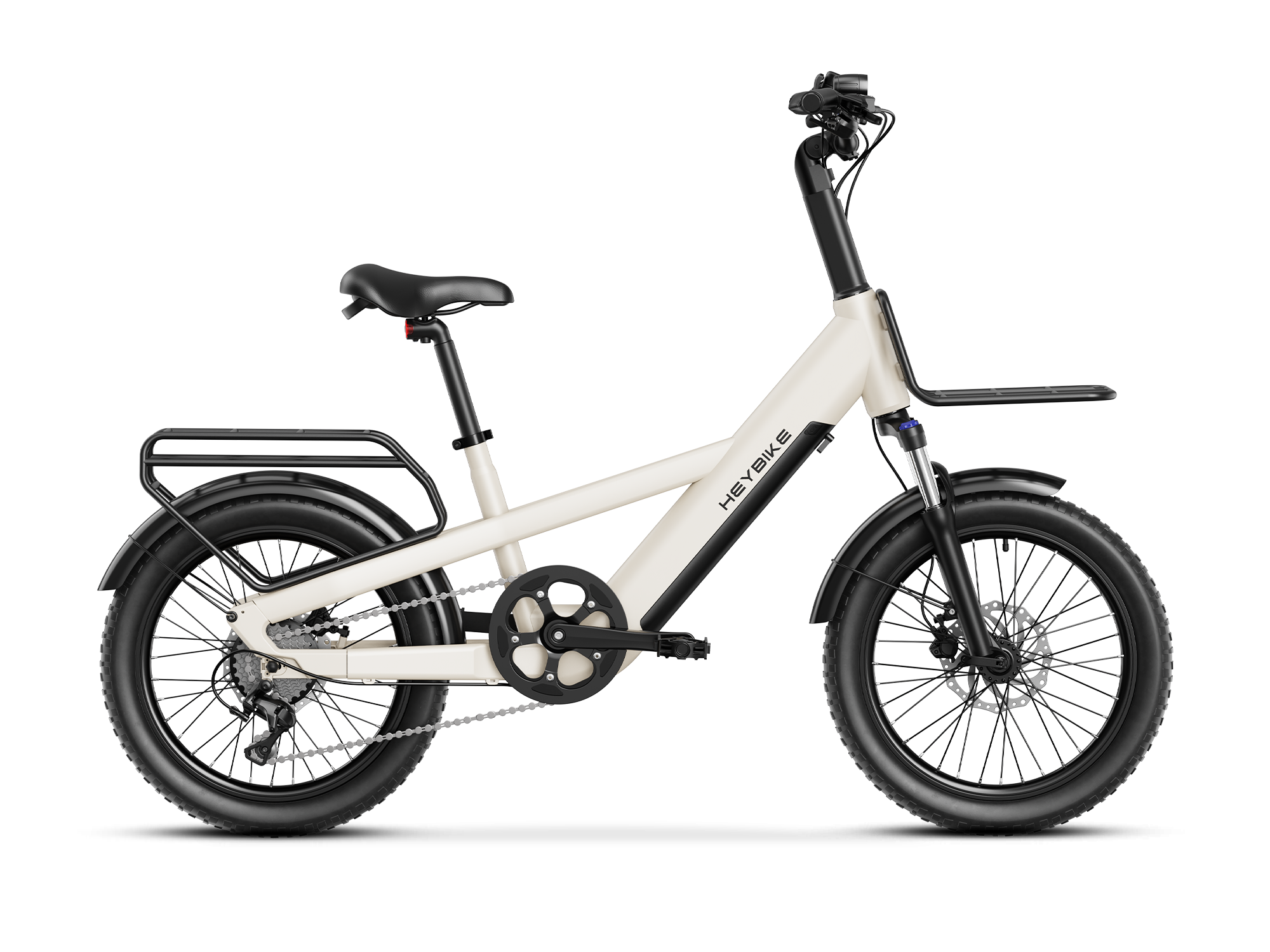

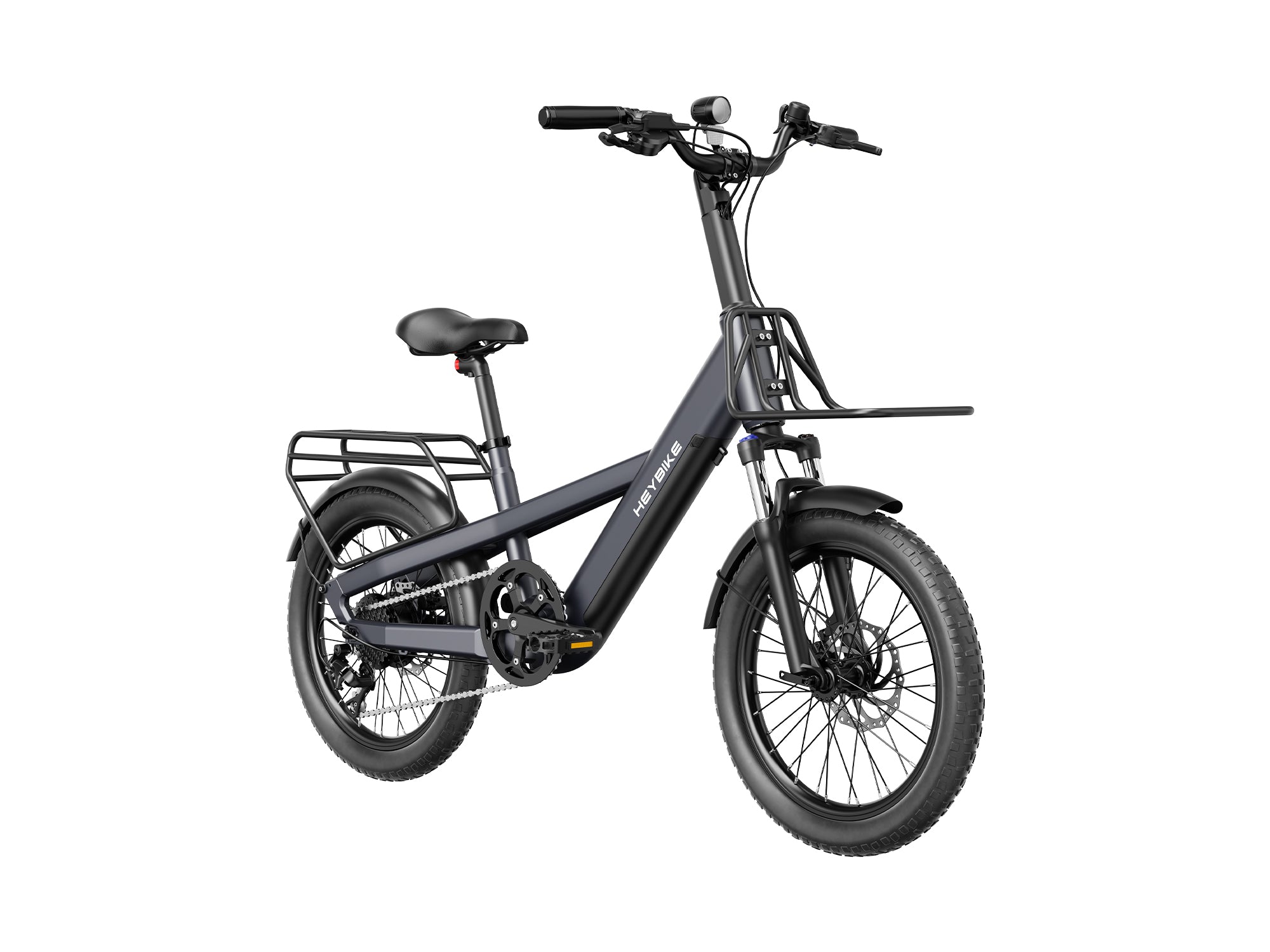

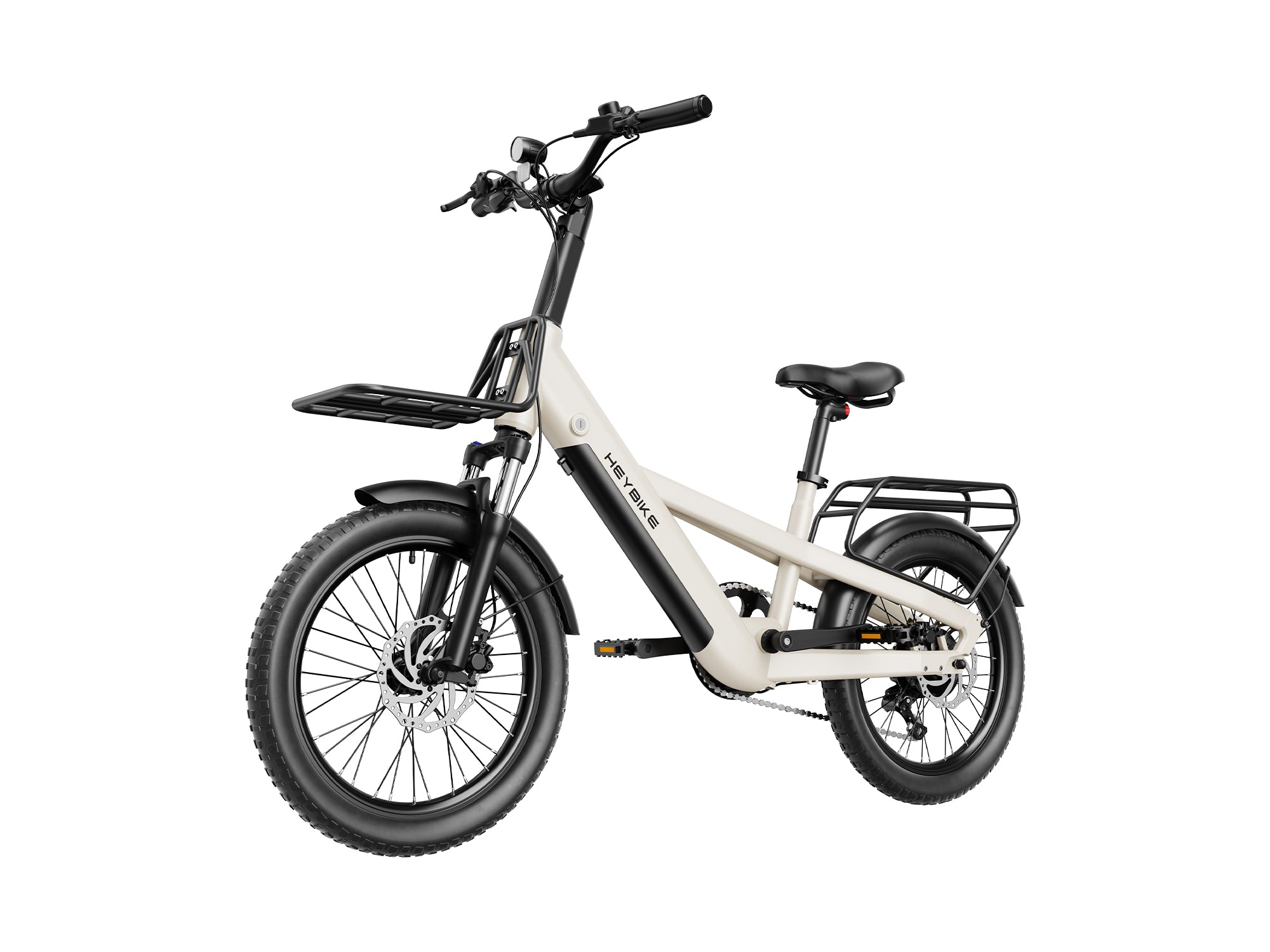

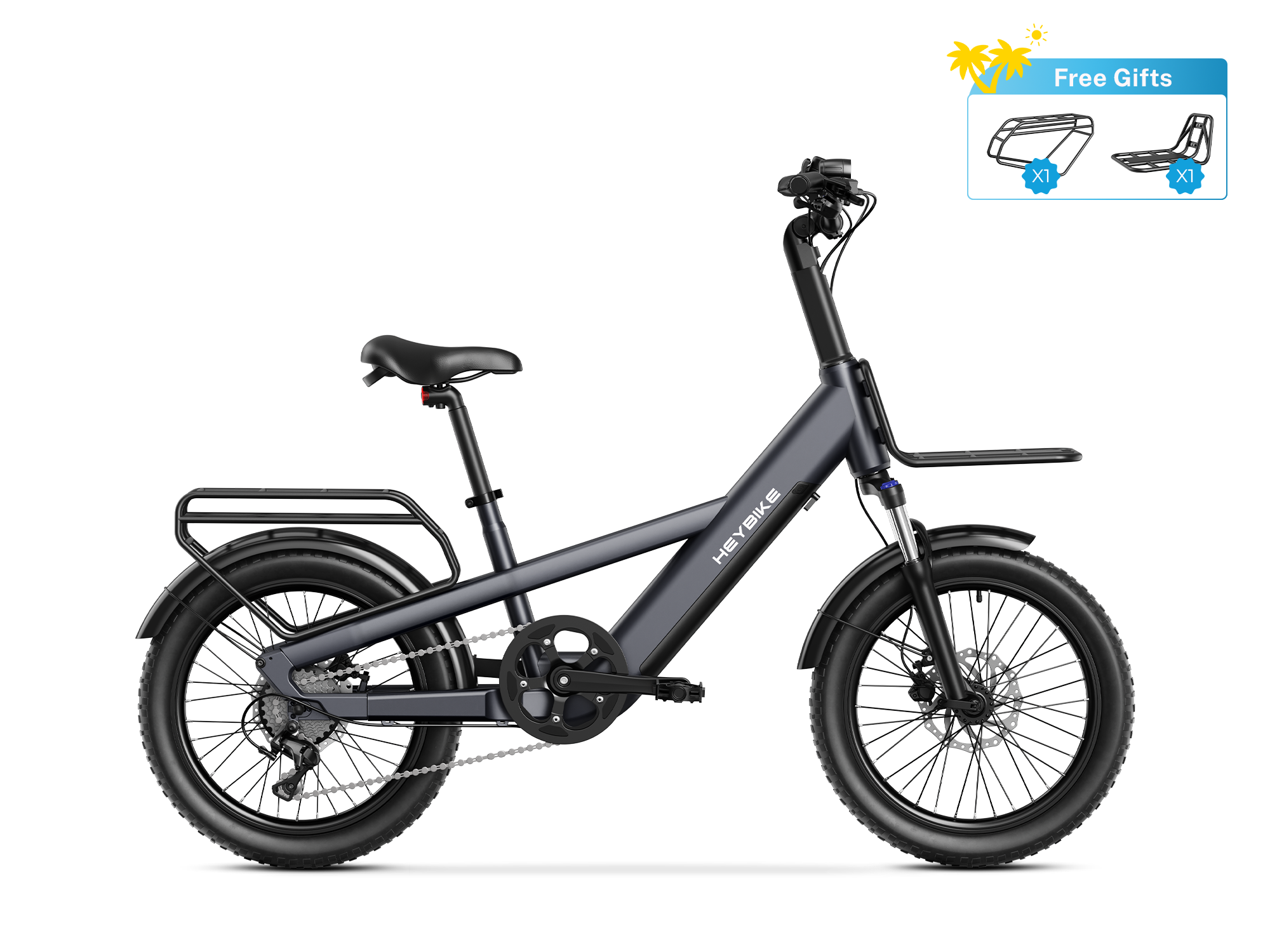

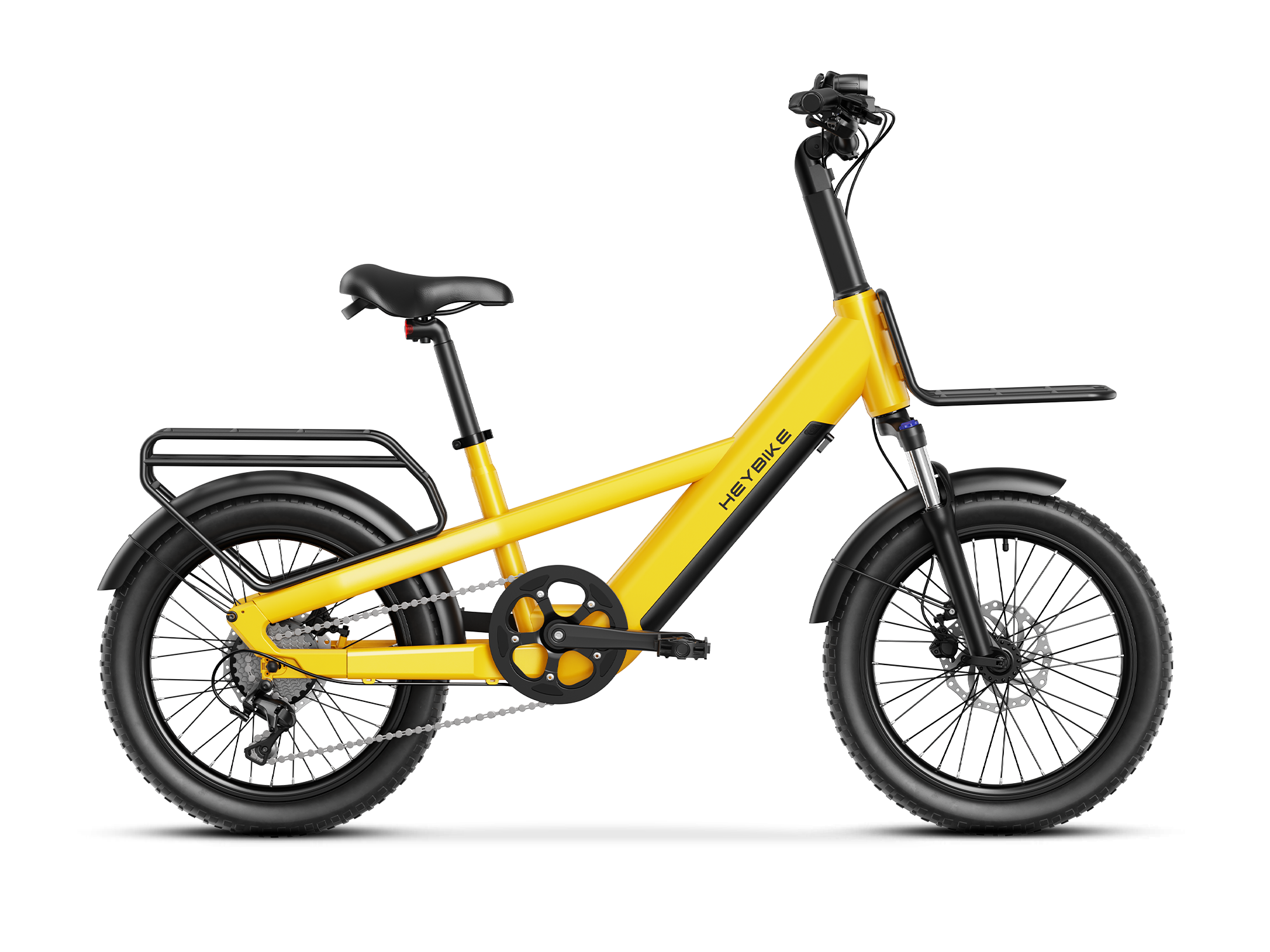

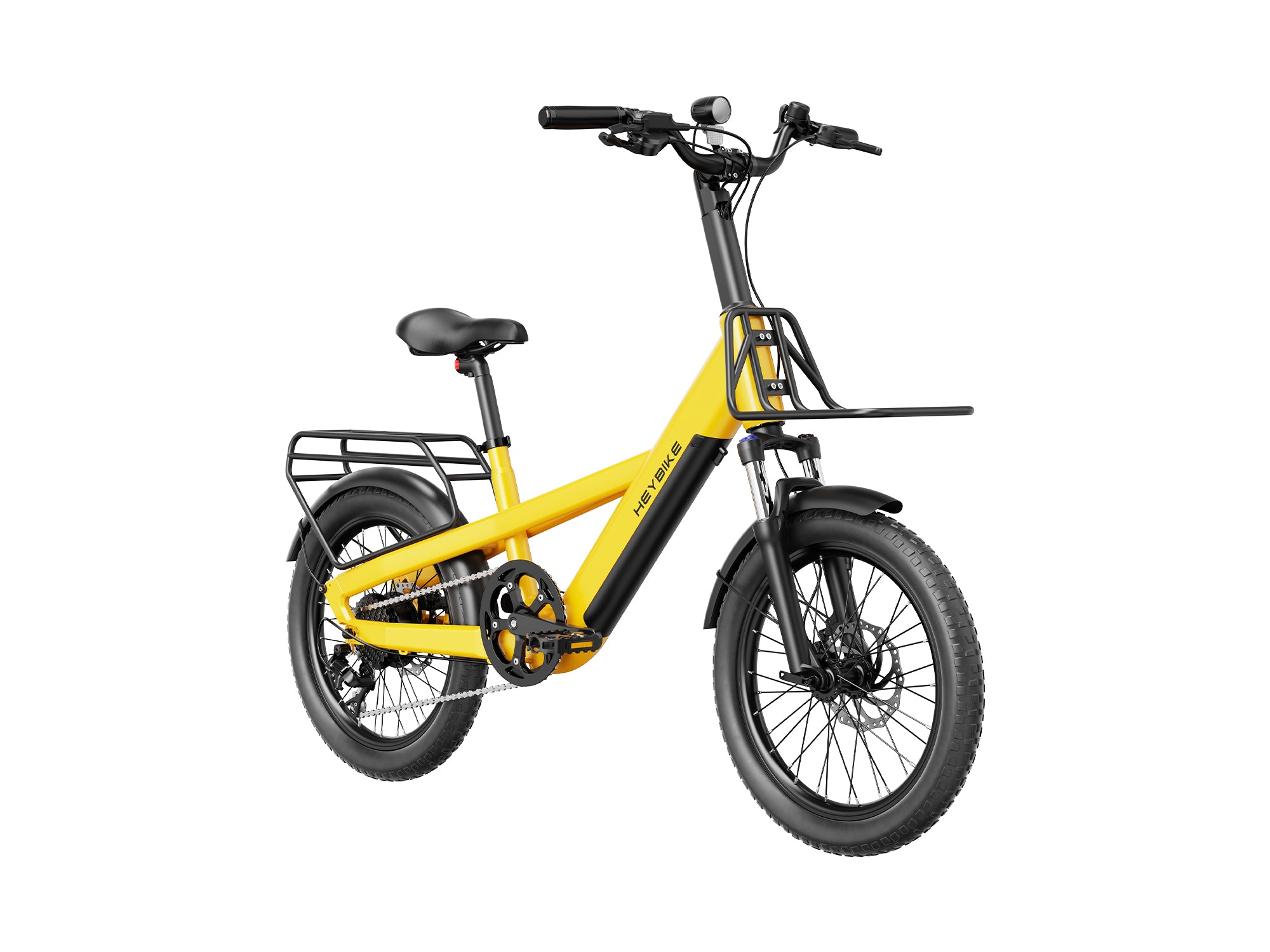

EC Compact Sport

3 interest-free payments Learn More
Exclusive Offer





Conquer Any Terrain with Versatile Gearing
A Mobility All-rounder
EC Compact Sport stands out with its Shimano 8-speed gear system, making it the ultimate all-rounder for diverse terrains. This advanced gearing allows you to tackle various outdoor landscapes with ease, providing a comfortable and controlled ride whether you're cruising on flat paths or tackling steep inclines.
Long Range, Large Battery Capacity
Built for Practicality
EC Compact Sport is equipped with a high-capacity 36V 13Ah (468Wh) battery, ensuring you have the endurance to tackle any outdoor adventure without the fear of running out of power.
MIVICE torque sensor
User-Friendly Design
EC Compact Sport features a MIVICE torque sensor that provides a prompt response, thus offering a natural riding experience throughout your outdoor exploration.
- Geometry
- Suitable height
- Specifications
- What's in the box?

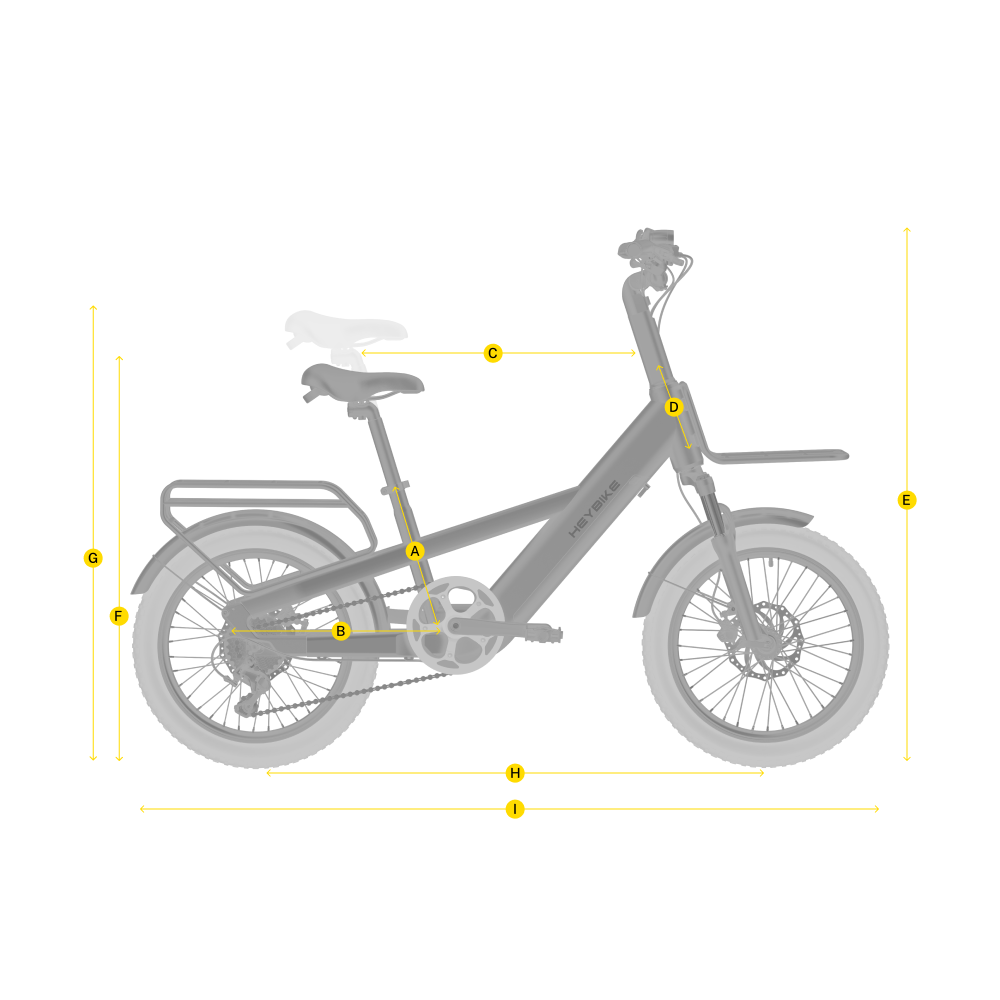

Description | Size (Inch) | |
---|---|---|
0 | Suitable for riders | 5'1" to 5'11" tall |
A | Seat tube | 1'1" |
B | Chainstay | 1'5" |
C | Effective Top Tube | 2'0" |
D | Head Tube | 0'7" |
E | Handlebar Height | 3'8" |
F | Minimum seat height | 2'5" |
G | Maximum seat height | 3'0" |
H | Wheelbase | 3'6" |
I | Total length | 5'3" |


Basic Information
-
Product Model
EC Compact Sport -
Color
White, Yellow, Grey -
Size
one size -
Dimension:L*W*H
162*68*111CM -
Package Size:L*W*H
137*27*90CM -
Motor
36V 250W Rear Motor -
Battery
36V13AH -
Charger
42V 2A -
PAS
3 levels -
Controller
torque controller -

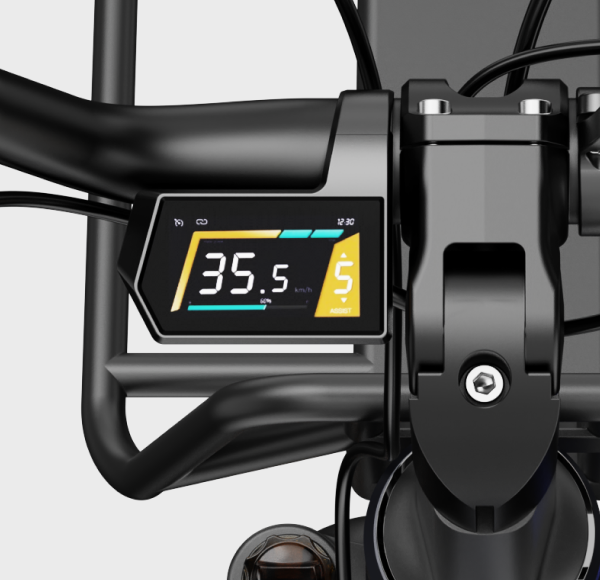

Display
TFT color display -
App
App support
Mechanical System
-
Frame
Aluminum Alloy -
Tires
Chaoyang 20'' x 2,4'' -
Rim
Aluminum Alloy -
Front Fork
Suspension Front Fork -

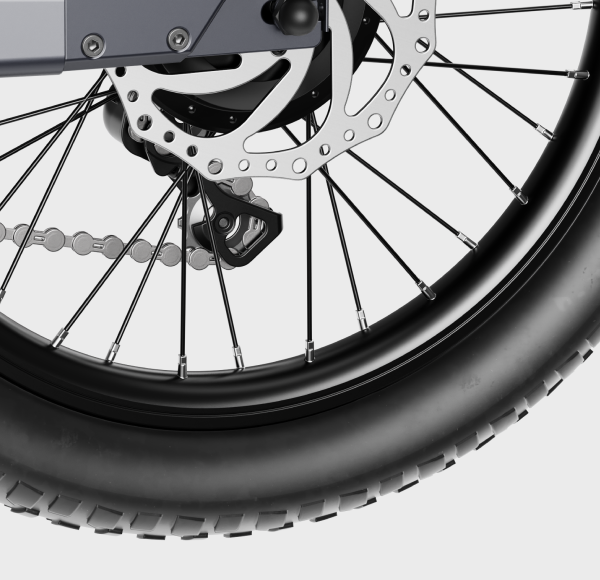

Brake
TEKTRO Hydraulic Disc Brakes -
Speed gears
Shimano 8-Speed -
Handlebar
Y-shaped Handlebar -
lights
Front Light & Rear Light -
rear rack
standard
Performance
-
Max speed
25km/h -
Range
110km -
Recharging Time
6-7/h -
Max Load
120kg -
N.W.
24kg -
rear rack capacity
45kg

Item name & Quantity | |
---|---|
A | Manual Flyer x1 |
B | Pedals x2 |
C | Saddle x1 |
D | Charger x1 |
E | Front Wheel x1 |
F | Battery Lock Keys x2 |
G | Tools x7 |
H | Plastic Threaded Winding Cable x1 |
I | Cable Ties x3 |
J | Headlight x1 |
K | Front Fender x1 |
L | Front Basket x1 |
M | Front Wheel Quick Release x1 |
N | Electric Bicycle x1 |
FAQ
Key Differences Between EC Compact City and EC Compact Sport
City Model: Focused on simplicity and ease, the automatic 3-speed hub system and rigid aluminum fork make it a low-maintenance choice for city riders.
Sport Model: Designed for active lifestyles, the Shimano 8-speed derailleur and suspension fork offer enhanced control and comfort for diverse terrains.
What sets the EC Compact Sport apart for active riders?
Its Shimano 8-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility.
How does the suspension enhance the EC Compact Sport?
The hydraulic front suspension fork, with the 20”x 2.4”puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness.
Is the EC Compact Sport suitable for long rides?
Yes, the 36V 13Ah battery provides a reliable range of up to 110 km for extended adventures.
Can the EC Compact Sport handle heavy loads?
Absolutely! It's designed to load up to 120 kg, perfect for carrying camping gears and daily necessities.
What safety features does the EC Compact Sport offer?

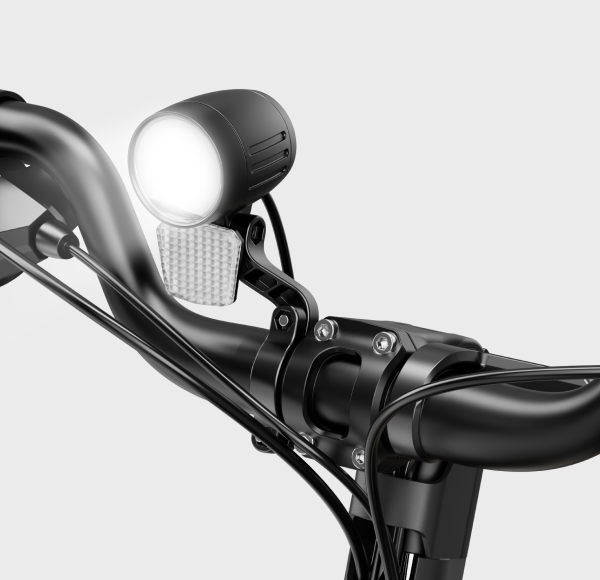

The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly.
