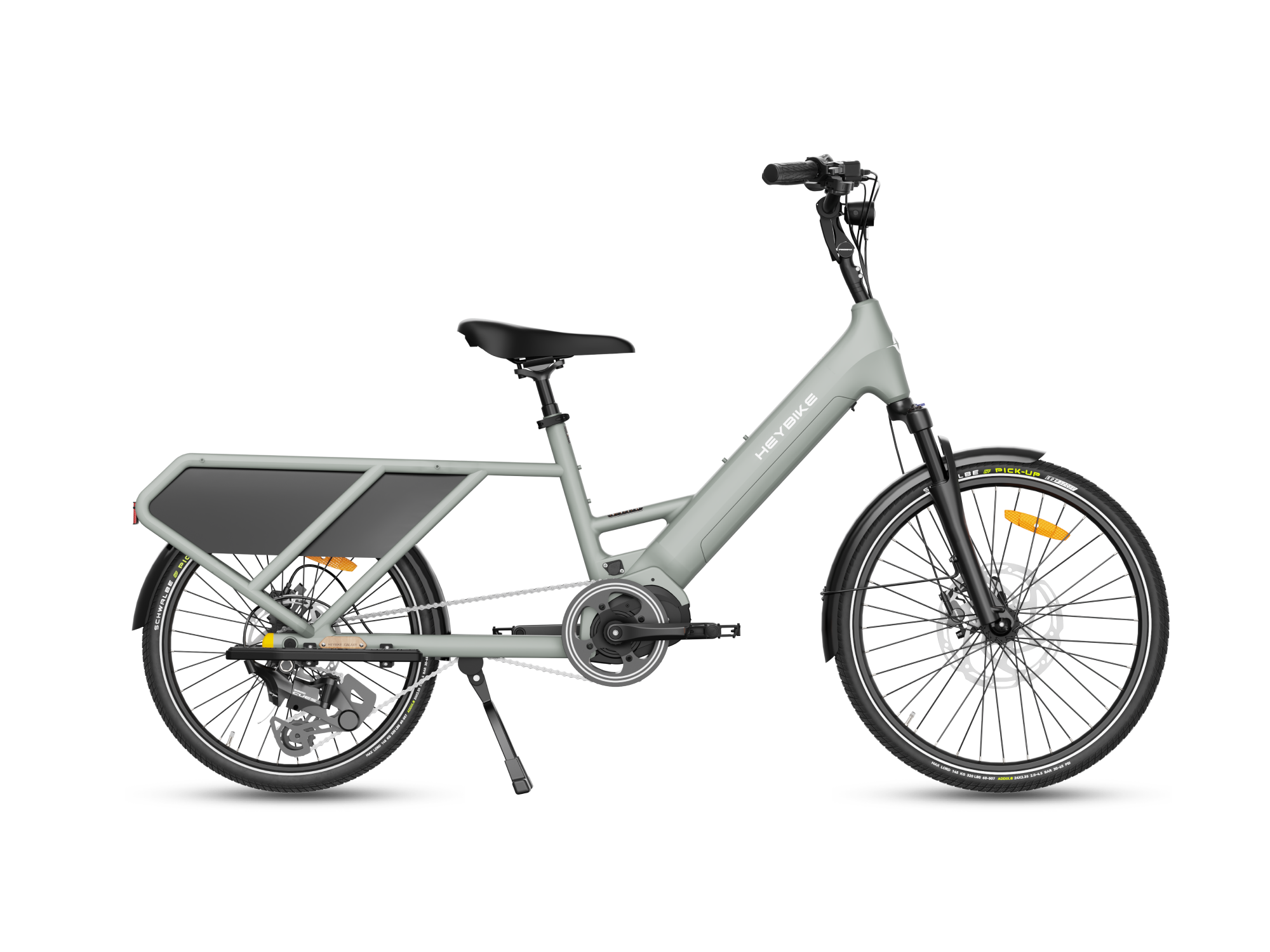

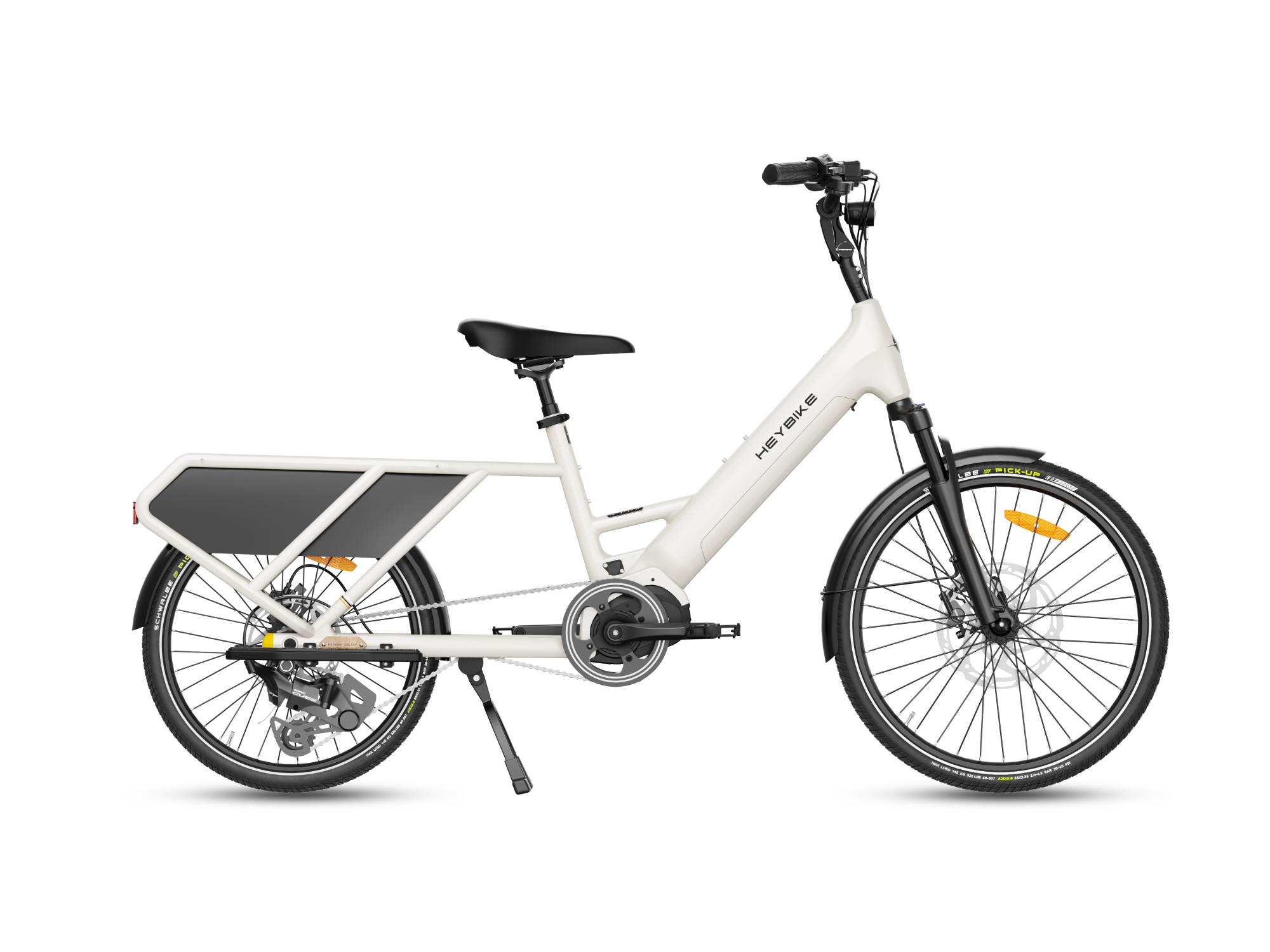

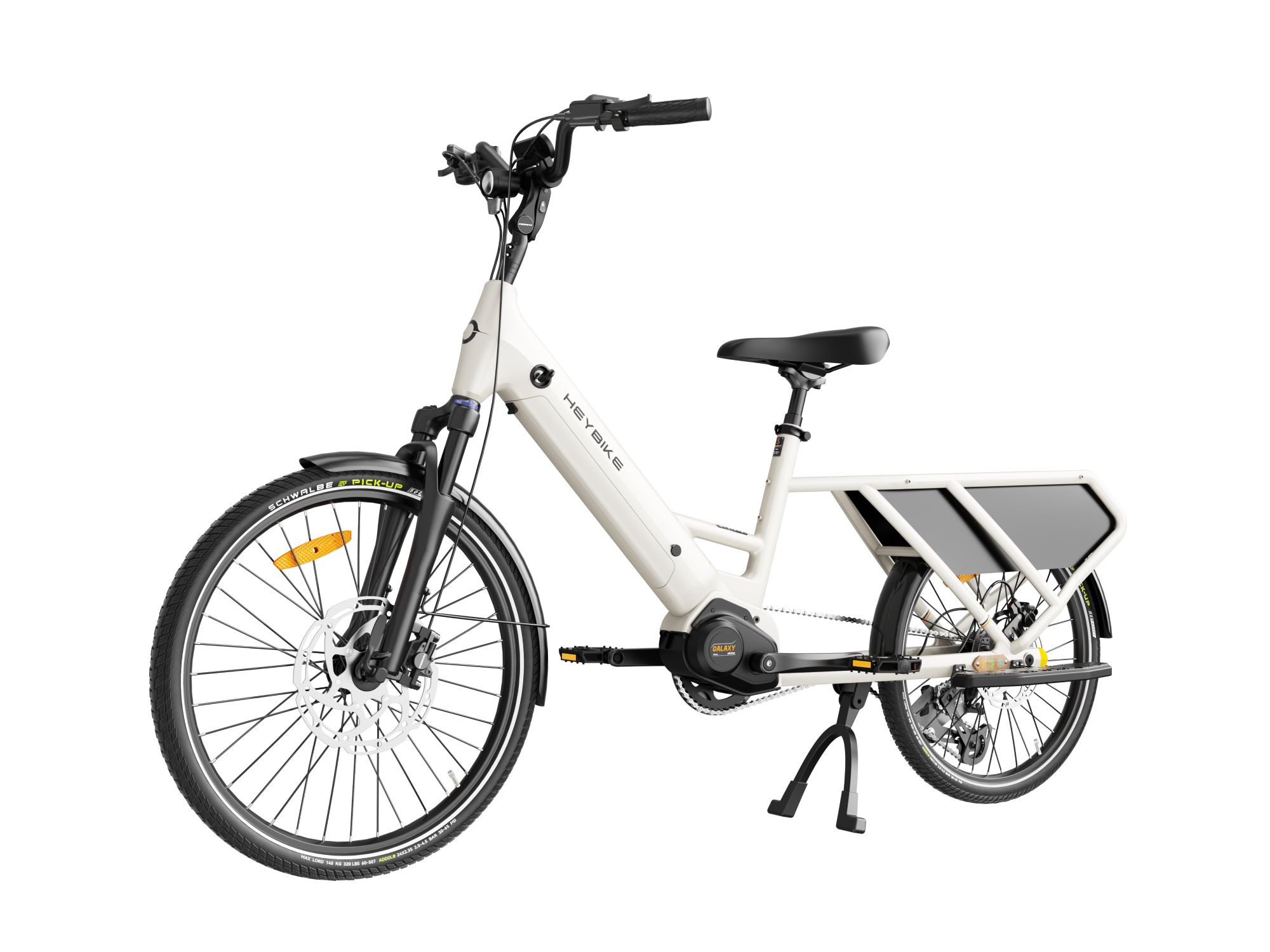

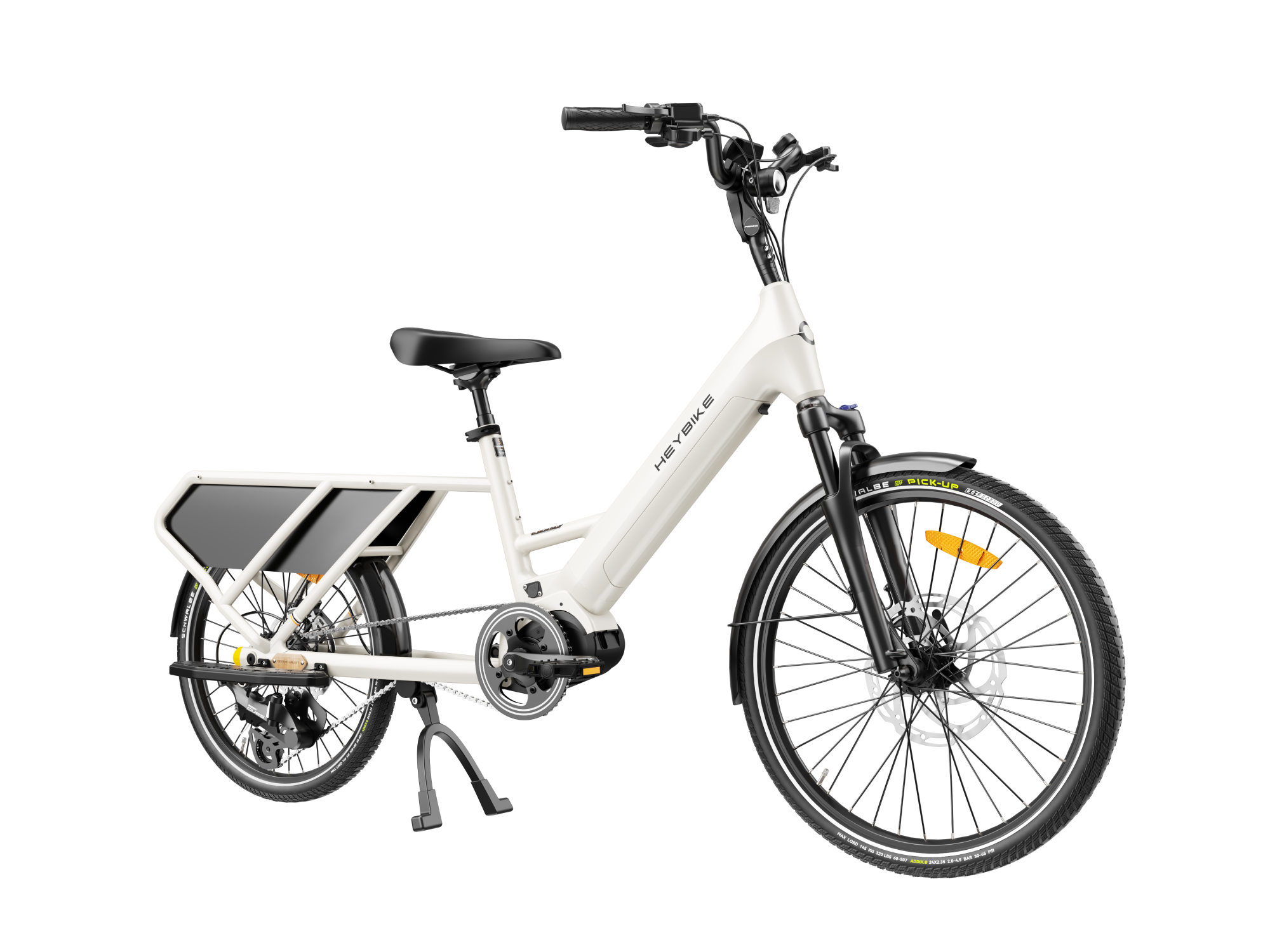

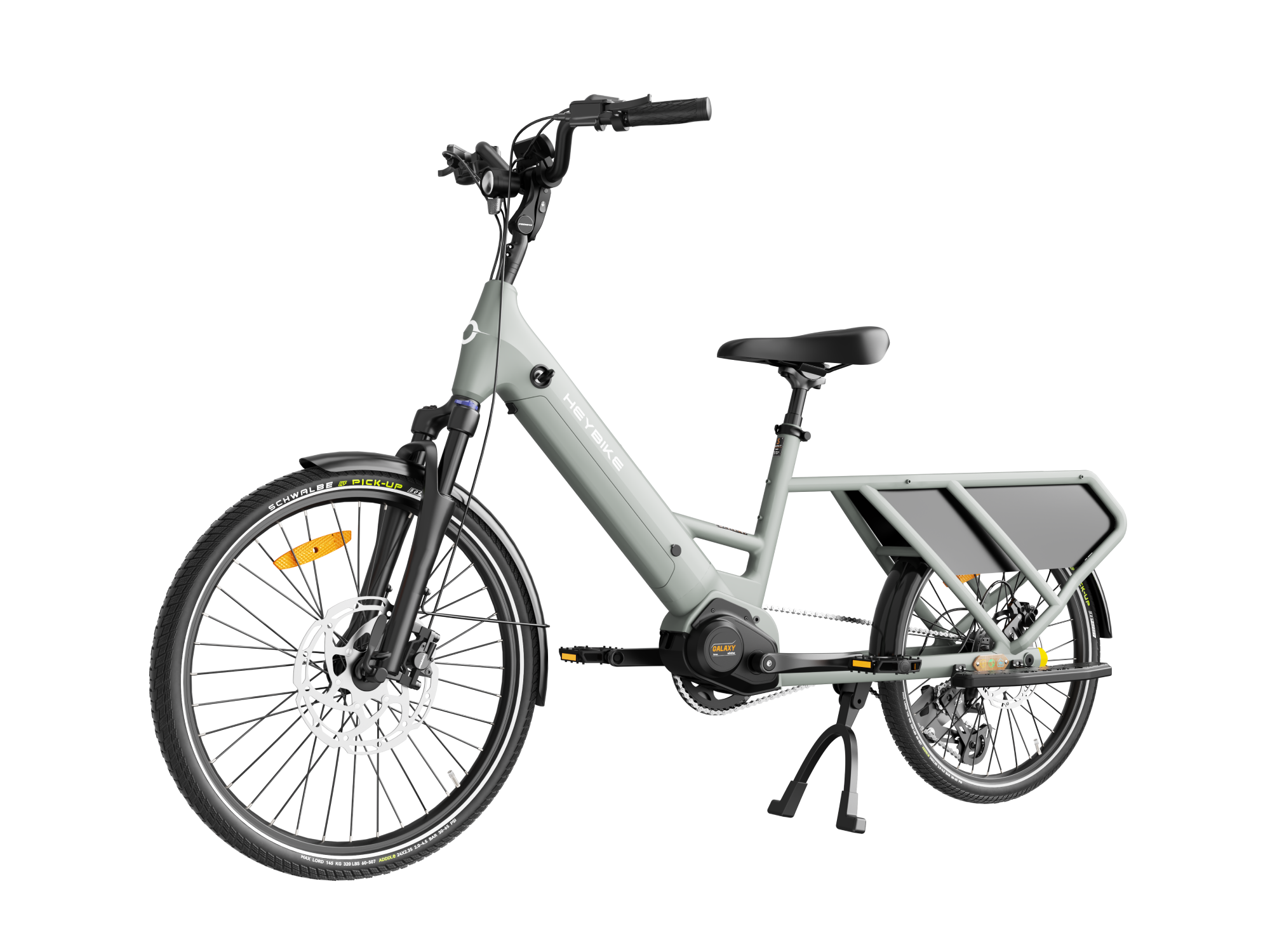

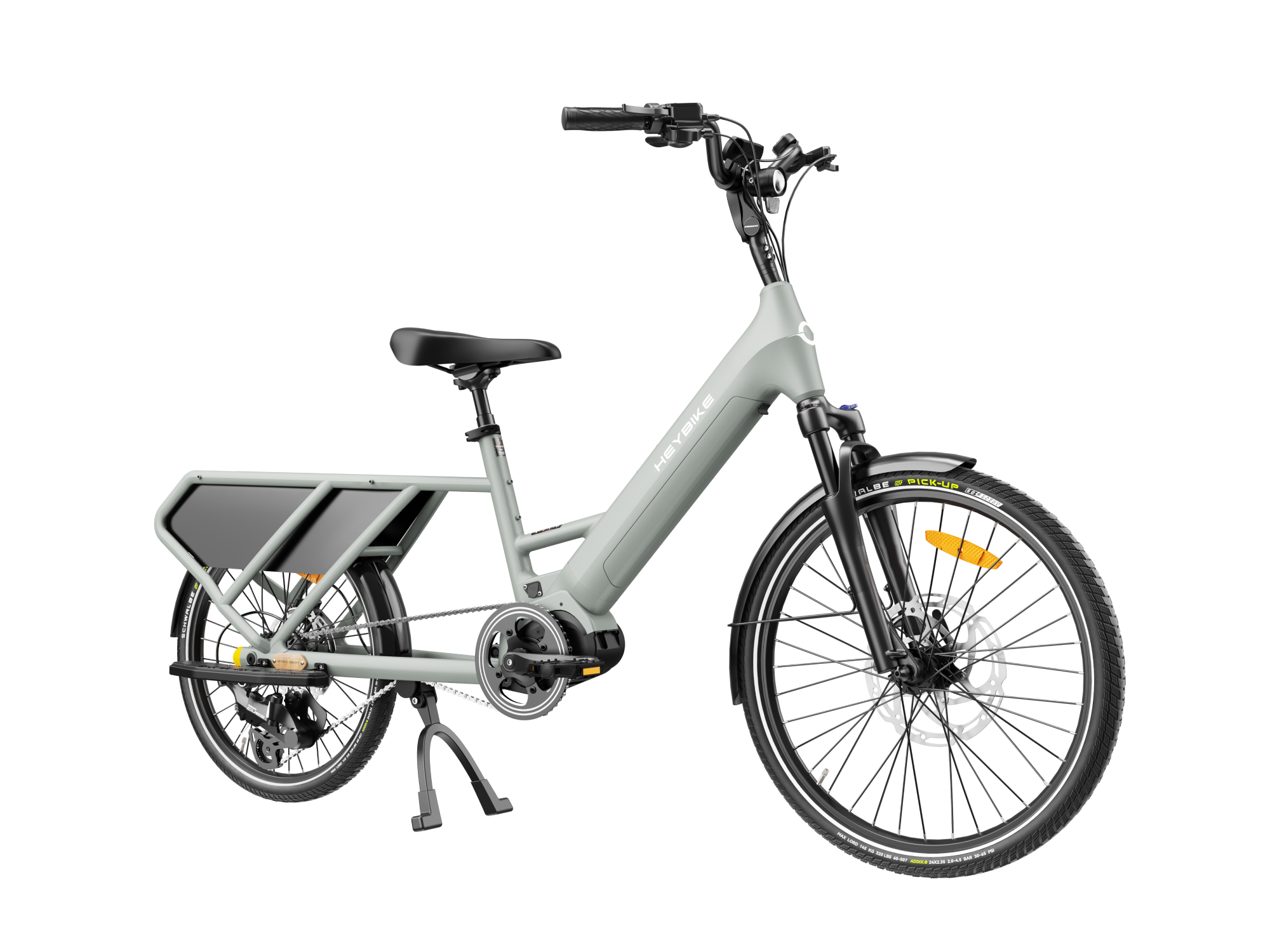

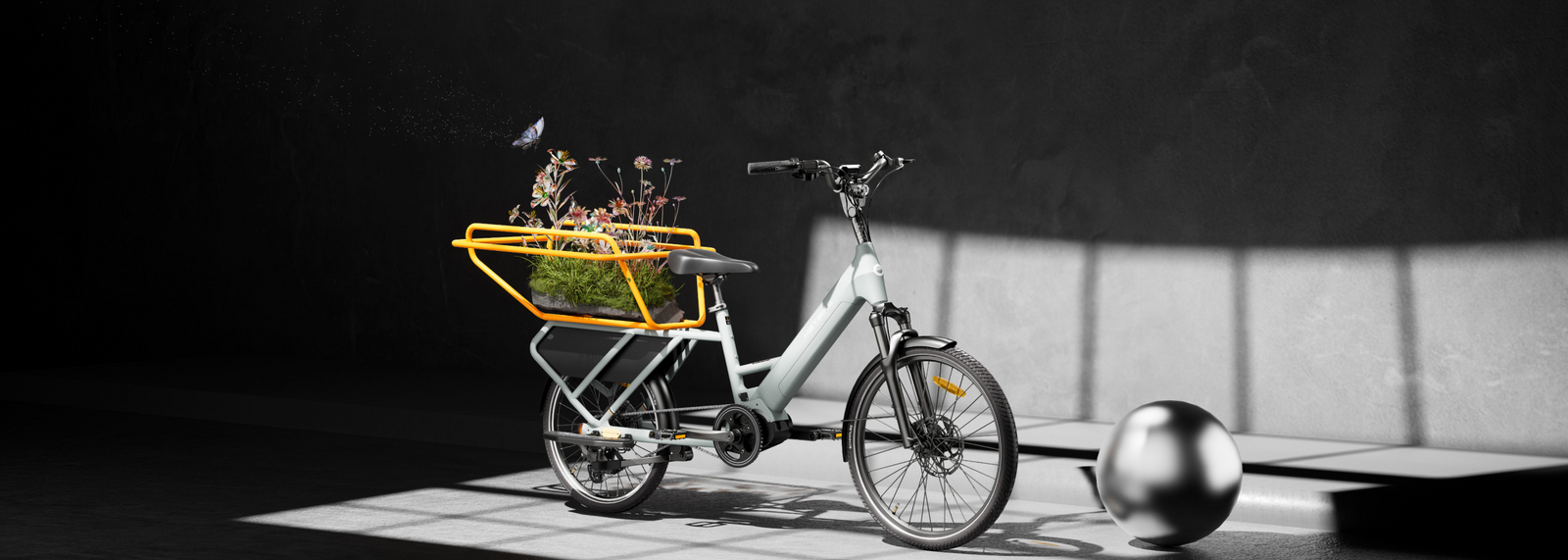

Galaxy X
Family-Ready Cargo Ebike
3 interest-free payments Learn More
Exclusive Offer
For Heavy Loads & Long Roads.
Load it up and hit the road. Galaxy X is the muscle you need—without sacrificing comfort or style.

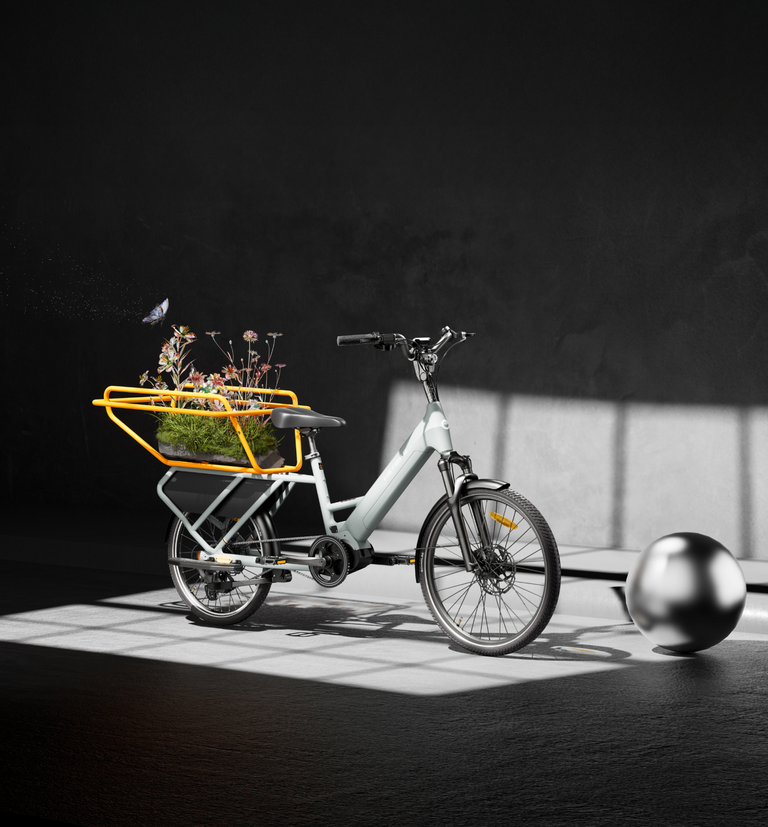

Haul Any Items As You Wish
Galaxy X is built for riders who need more capacity, more stability. With a 150kg max payload, it’s the perfect partner for hauling groceries, gear, tools, or kids. Versatile enough for family life, tough enough for adventure.
Power That Loads More
Equipped with Venus Plus System, Galaxy X delivers strong torque for loaded rides and long-lasting range for outings.
250W Mid-drive Motor
100N·m Max Torque
500Wh Capacity
135KM Max Range

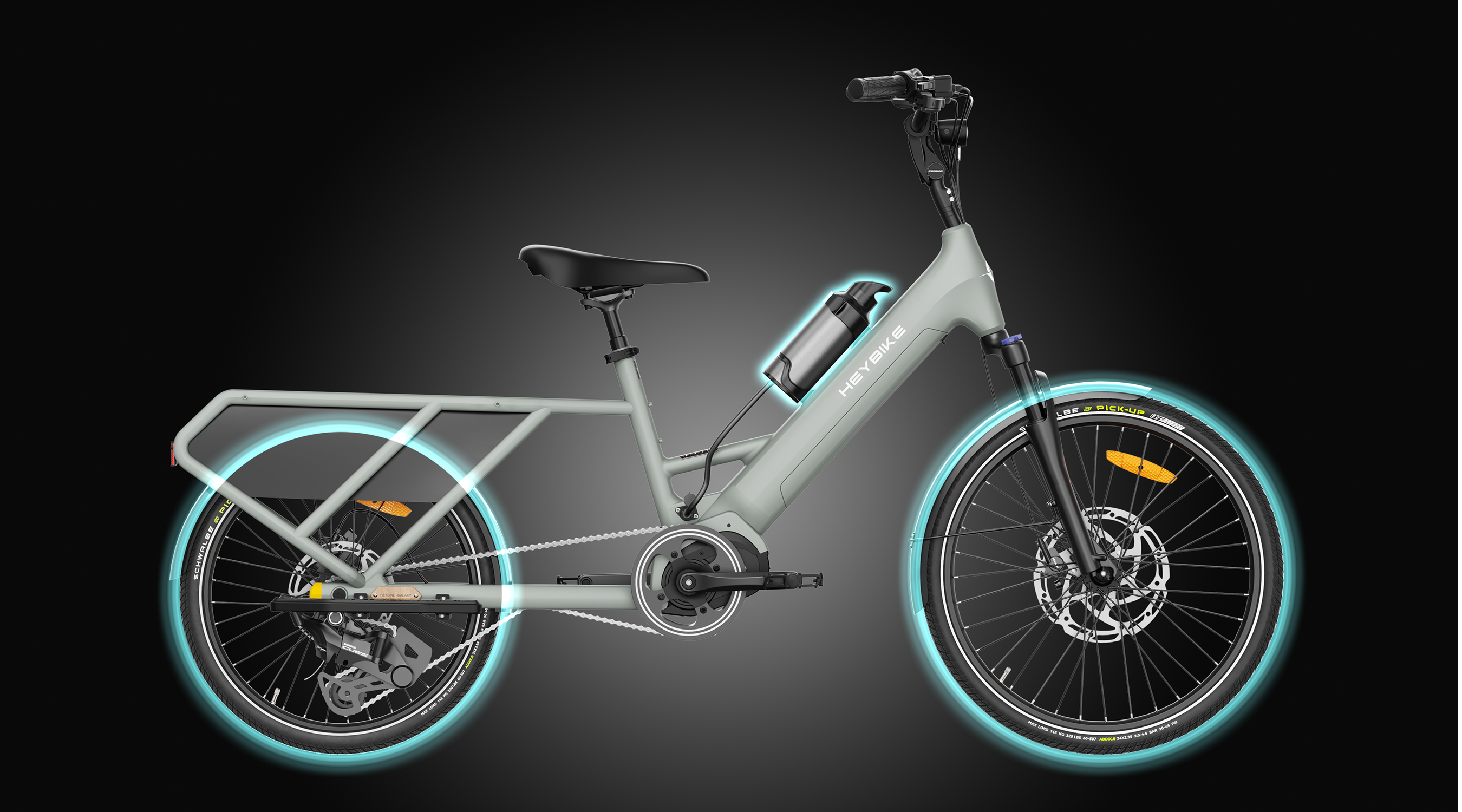

Cargo-Grade Tires. Built Tough for Heavy Loads
The cargo-specific tires offer level 7 puncture resistance, ensuring durability across city streets or rugged paths.
The external battery add-on lets the ride even farther — no range anxiety, just freedom.

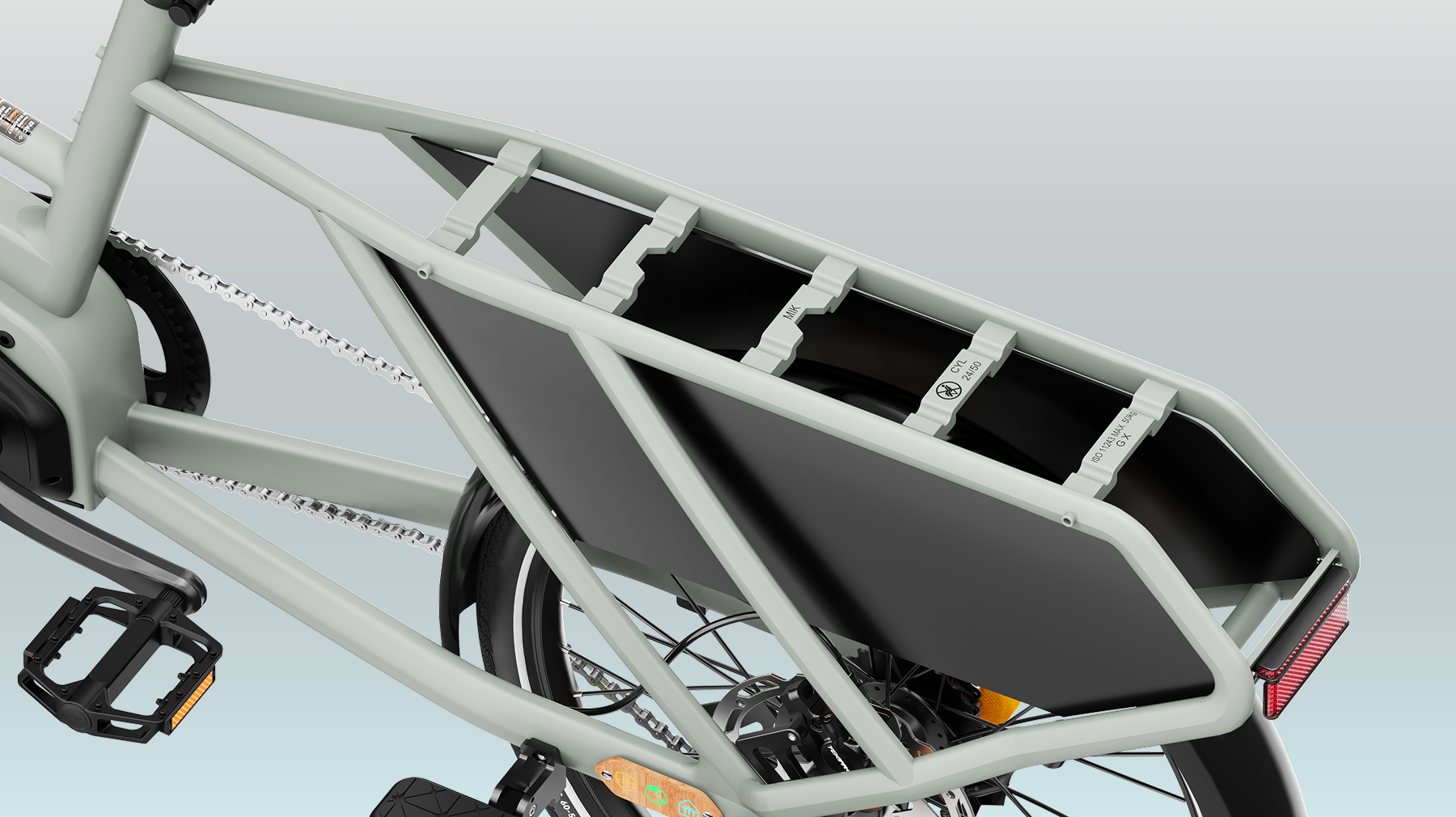

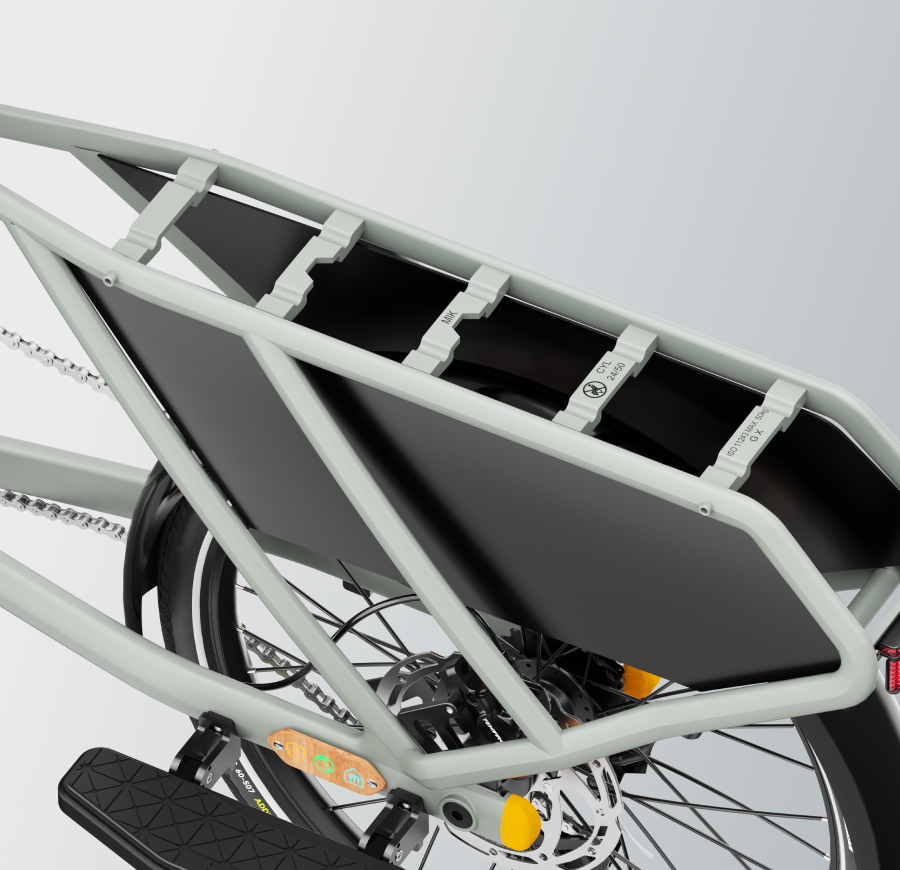

MIK Click Go System
Tool-free, secure mounting system for bags, baskets, and child seats. Swap accessories in seconds—ideal for daily commuting or weekend errands.

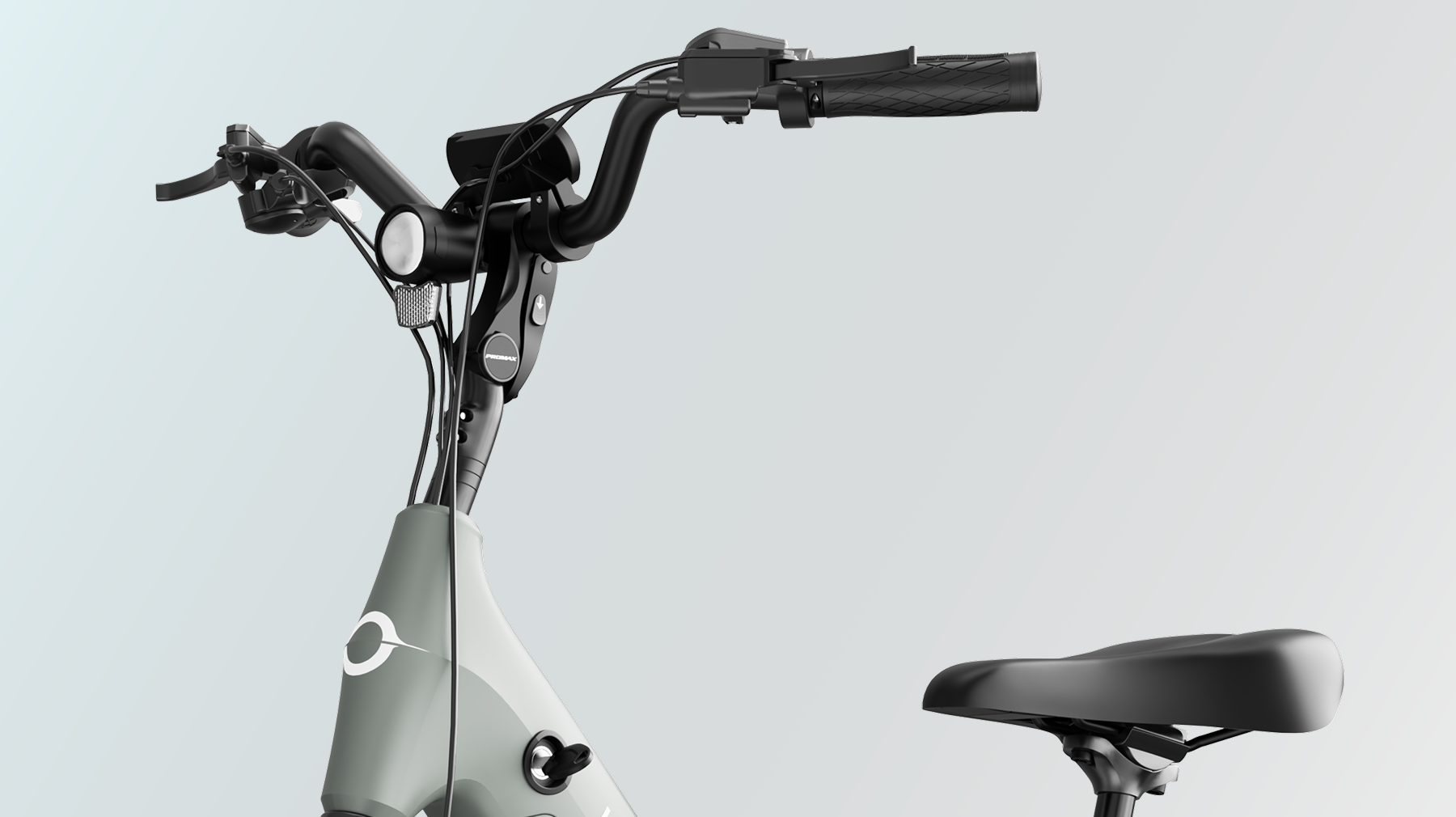

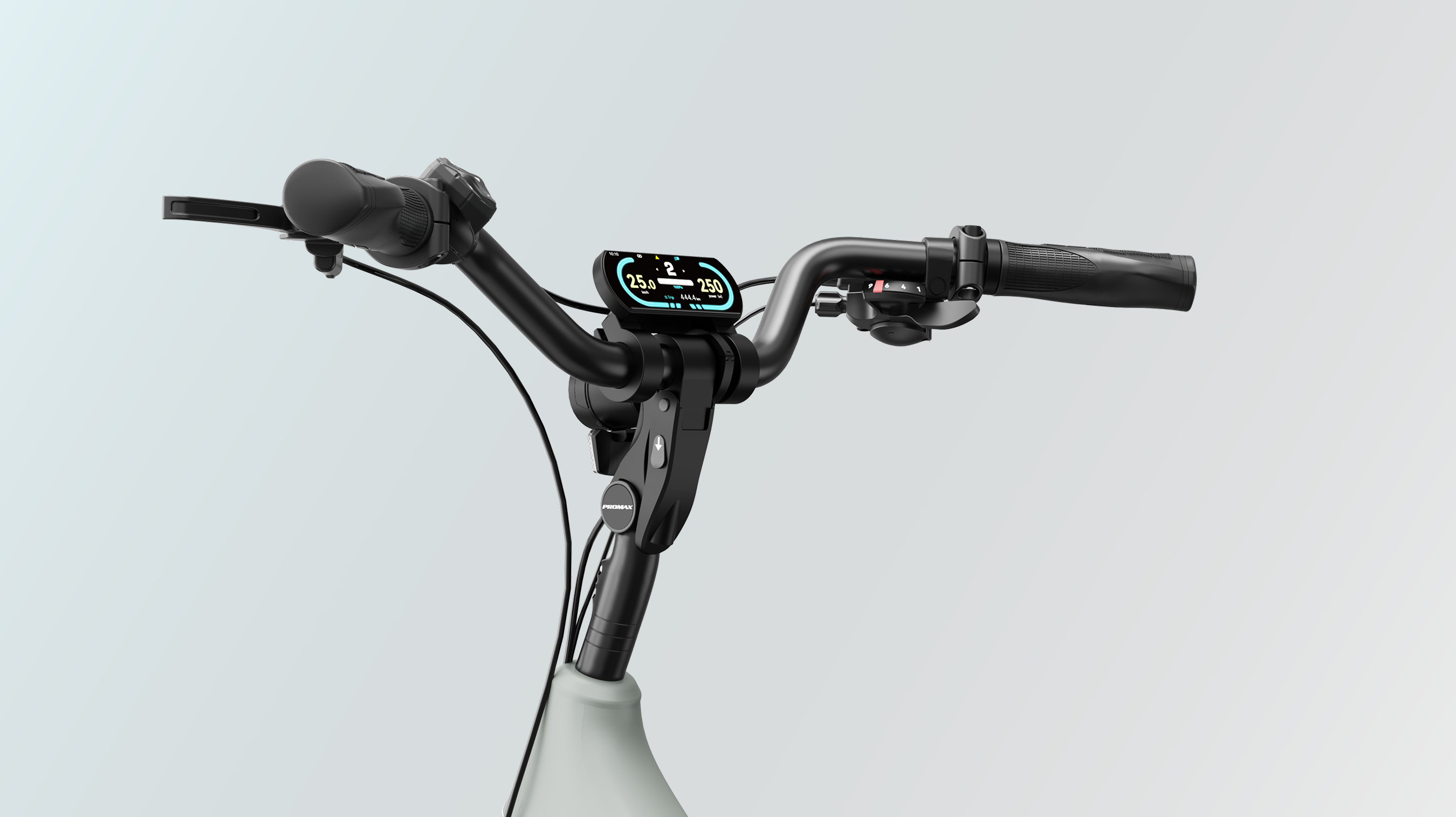

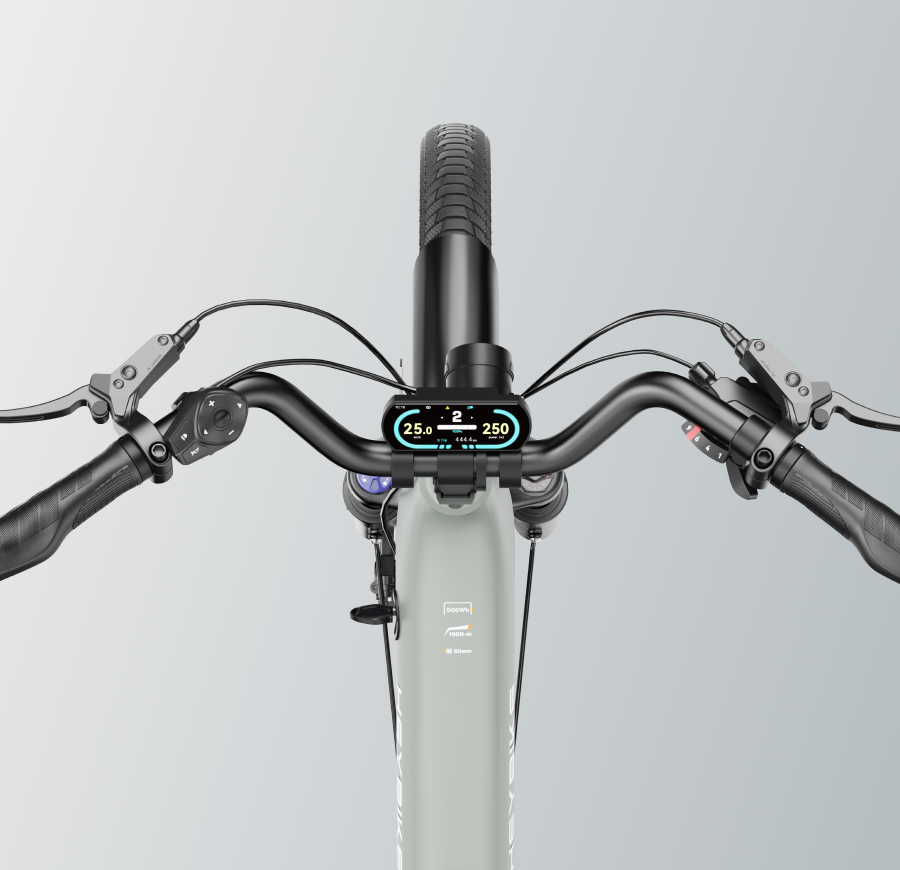

Adjustable Handlebar
Handlebar height and angle can be easily adjusted to achieve an optimal riding posture. Comfort and control are enhanced, reducing strain on wrists and shoulders during extended rides.

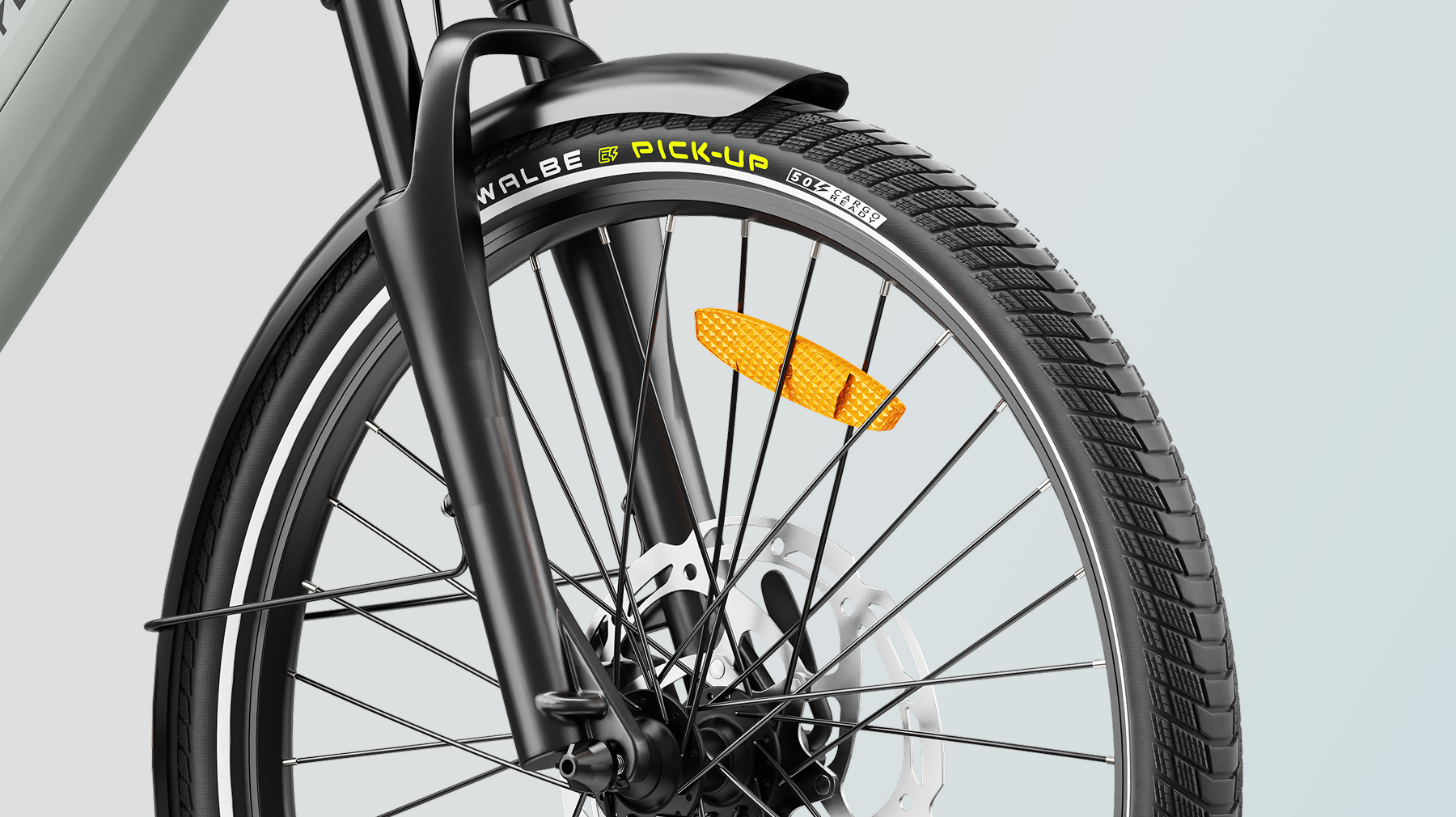

Schwalbe Tyres
Durable, puncture-resistant tyres designed for grip and safety in all conditions. Ideal for both urban roads and rugged paths, giving you confidence wherever you ride.
Shimano MT-200 Hydraulic Disc Brakes
Consistent braking power with minimal maintenance and excellent heat control. These brakes ensure fast, safe stops—even on wet or steep terrain.

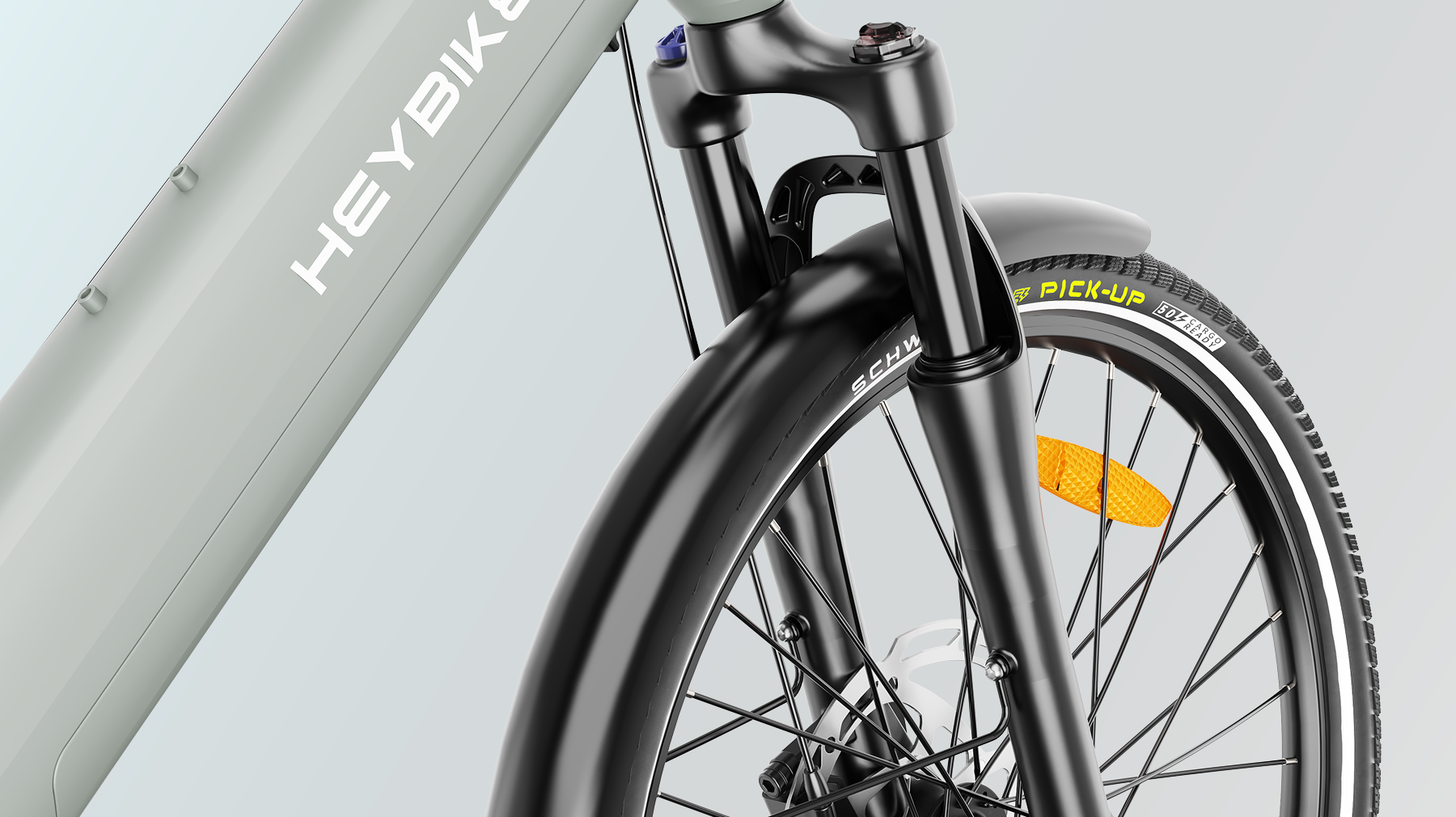

Hydraulic Front Fork
The hydraulic front fork absorbs bumps and shocks, ensuring a smoother, more stable ride—on trails, gravel, or city streets.
Easy-Open, Eco-Friendly Packaging
Made from recyclable materials with a side-opening design for simple setup. Includes DIY cutout panels for creative reuse—fun for the whole family.

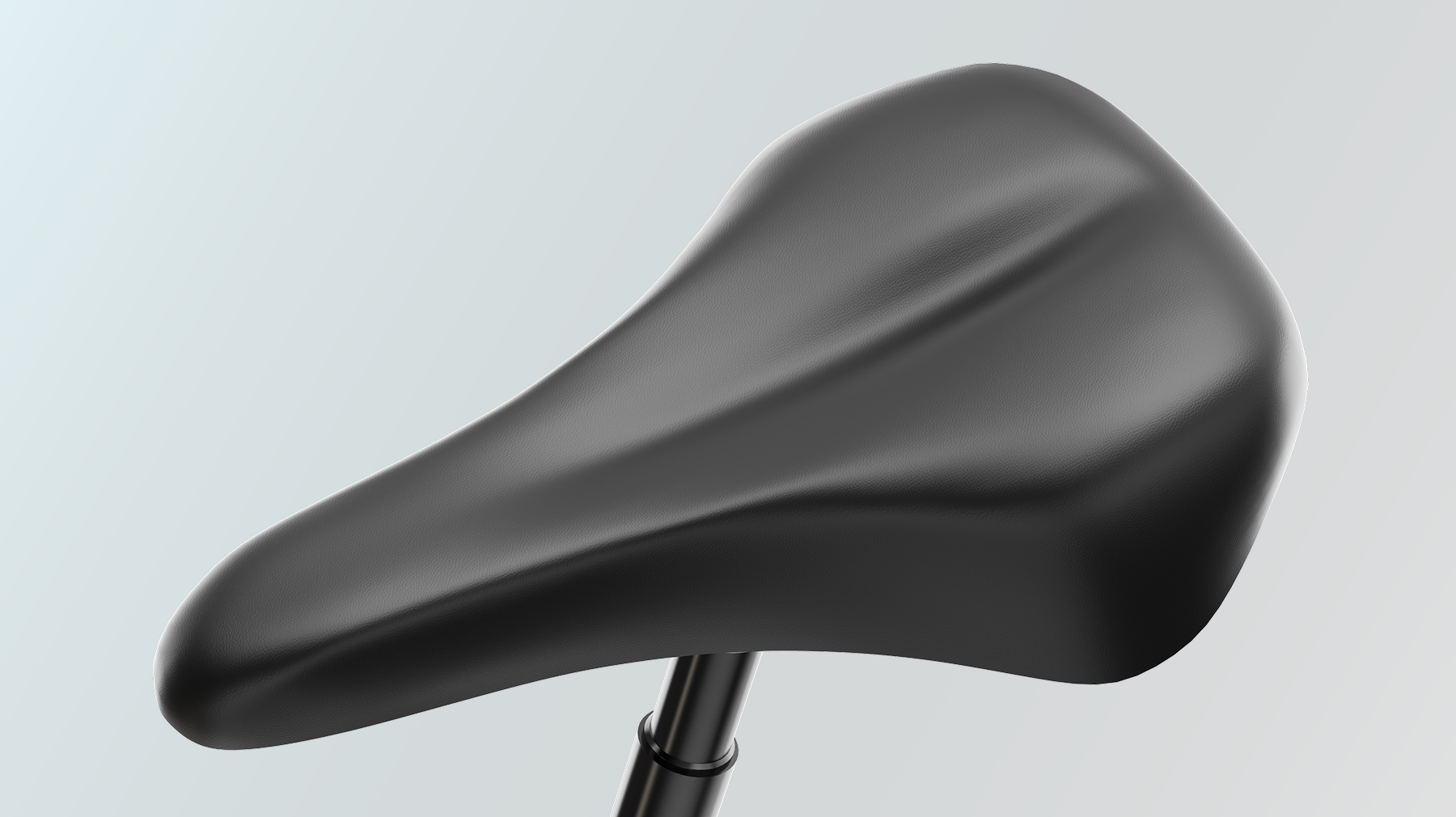

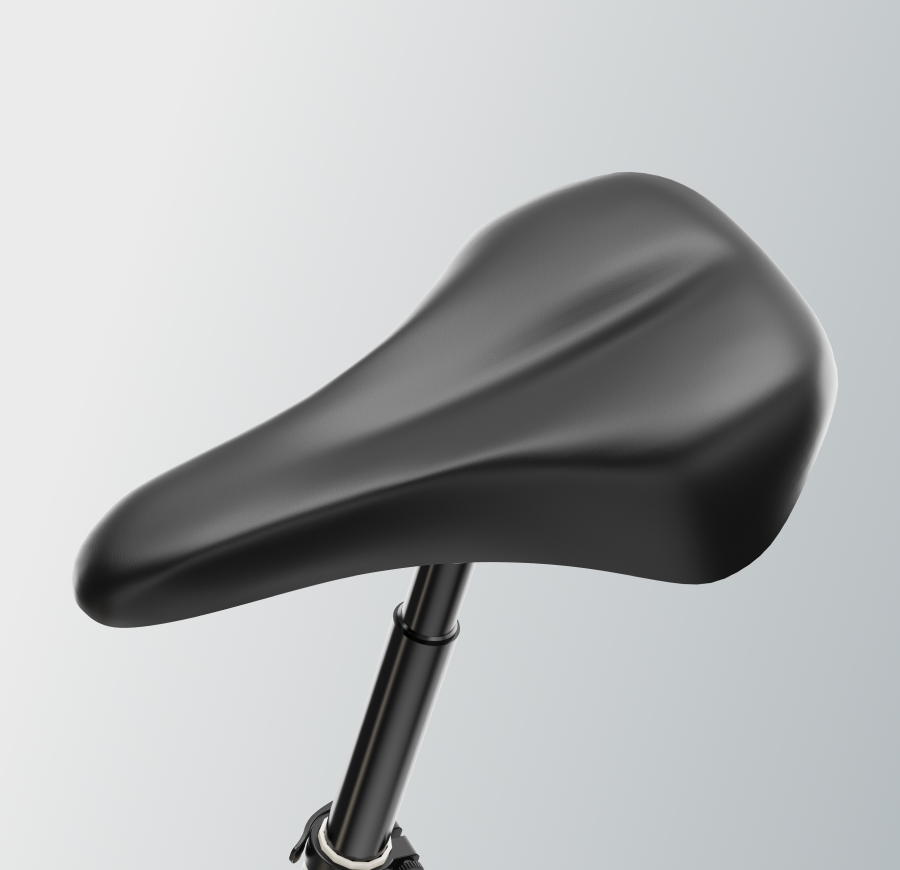

Selle Royal Saddle
Comfort-focused ergonomic design with pressure-relief zones. Perfect for long rides, it keeps you supported and reduces discomfort.

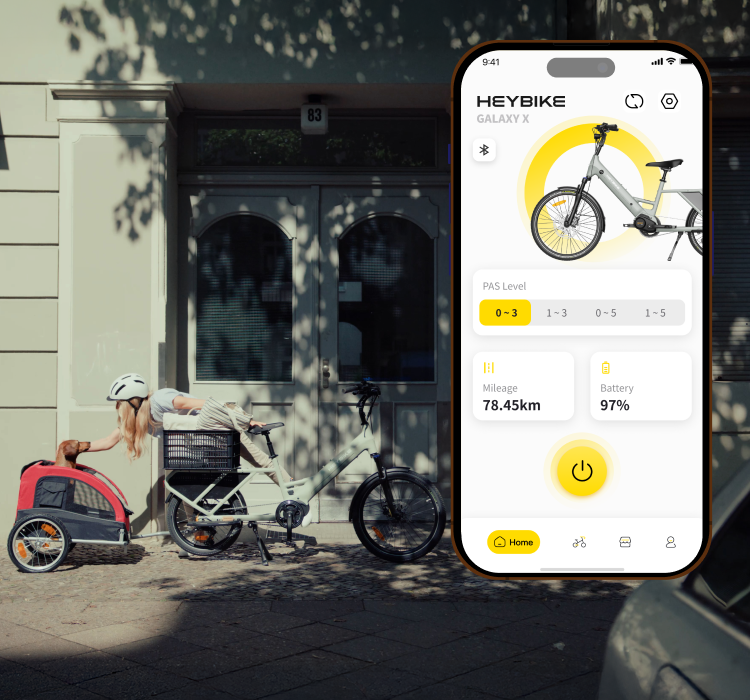

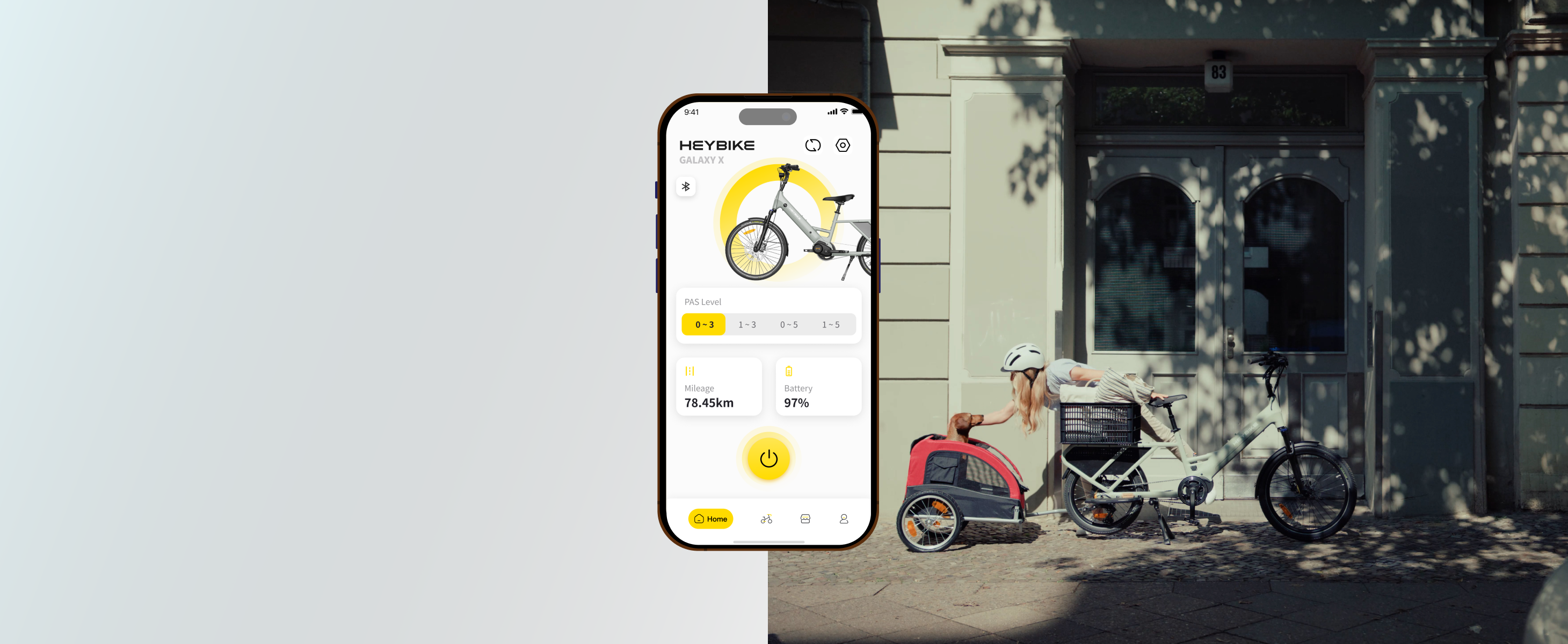

Smart APP
Your great rides deserve a diary! Connect your bike to the HEYBIKE app and create an impressive mileage log!
Download on the App store
- Geometry
- Specifications
- What's in the box?

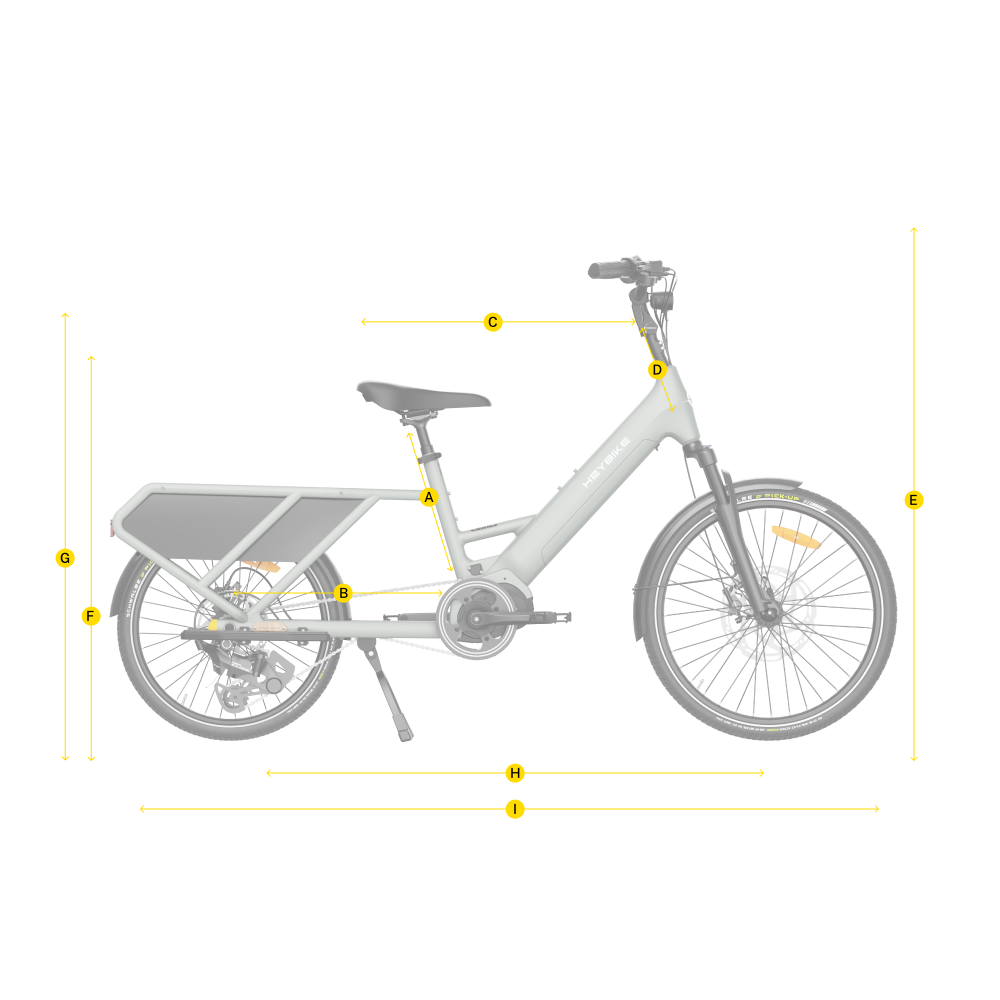

| Description | Size (Inch) | |
|---|---|---|
| A | Seat tube | S: 17" |
| B | Chainstay | 22.8" |
| C | Effective Top Tube | 25.6" |
| D | Head Tube | 7.9" |
| E | Handlebar Height | 44.5" |
| F | Minimum Seat Height | 33.9" |
| G | Maximum Seat Height | 37.8" |
| H | Wheelbase | 52.0" |
| I | Total Length | 74.8" |
ELECTRONICS
-
Motor
36V 250W Mid Motor (Venus Plus) -
Sensor Type
Torque Sensor -
Display
Color LCD Display -
Battery
500Wh Lithium Battery -
Charger
42V 100-240V 2A -
Lights
Front white LED, Rear red LED,Turning light -
Controller
Smart Controller -
APP
Heybike App Bluebooth
COMPONENTS
-
Frame
6061 Aluminum Alloy 17" -
Tyres
Schwalbe 24""×2.35""/20""×2.35"" PICK UP/Black-Reflex -
Speed Gears
Shimano CUES 9SP 11-41T -
Brake
Shimano MT-200 Hydraulic Disc Brakes -
Front Fork
Suspension Fork 686-24 T:60 -
Handlebar
Promax HB-T320 640mm -
Chain
KMC eGlide -
Saddle
Sello Royal ESSENZA PLUS -
Seat post
Zoom Aluminium alloy W/suspension -
Pedal
HF-808 Aluminum alloy
PERFORMANCE
-
Max speed
25km/h -
Max Torque
100 N·m -
Range
Up to 135 km with PAS Mode -
Recharging Time
6-8h -
Weight
30 kg -
Max. Load
150kg

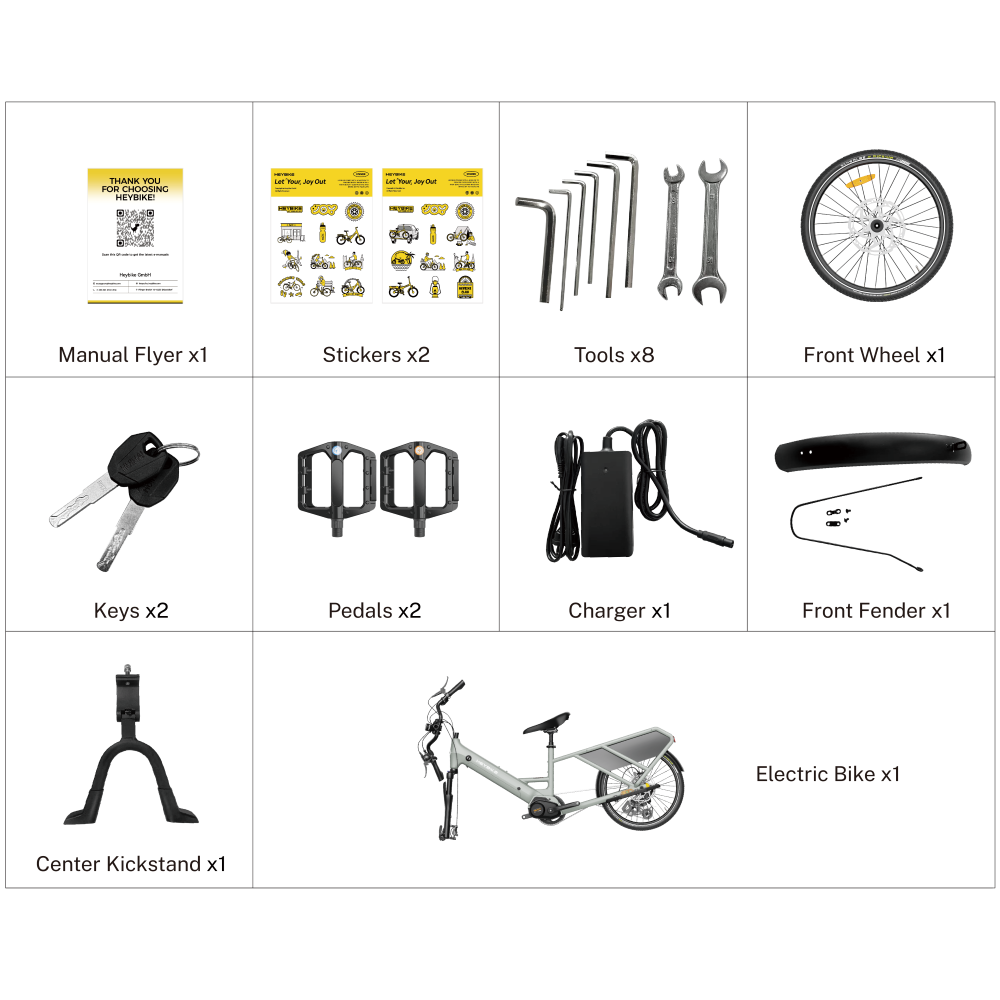

| Item name & Quantity | |
|---|---|
| A | Manual Flyer x1 |
| B | Stickers x2 |
| C | Tools x8 |
| D | Front Wheel x1 |
| E | Keys x2 |
| F | Pedals x2 |
| G | Charger x1 |
| H | Front Fender x1 |
| I | Center Kickstand x1 |
| J | Electric Bike x1 |
FAQ
What is the max load capacity of Galaxy X?
Galaxy X supports up to 150 kg, perfect for heavy cargo or passengers.
What kind of tires does Galaxy X use?
It uses cargo-specific tires with level 7 puncture resistance.
Does Galaxy X come with an extra battery?
Yes, it includes an external battery for extended riding range.
Is the battery removable?
Yes, the 500Wh battery is fully removable for convenient charging.
Does the Galaxy X support app connectivity or GPS?
Yes. It includes GPS and can connect to the Heybike app.

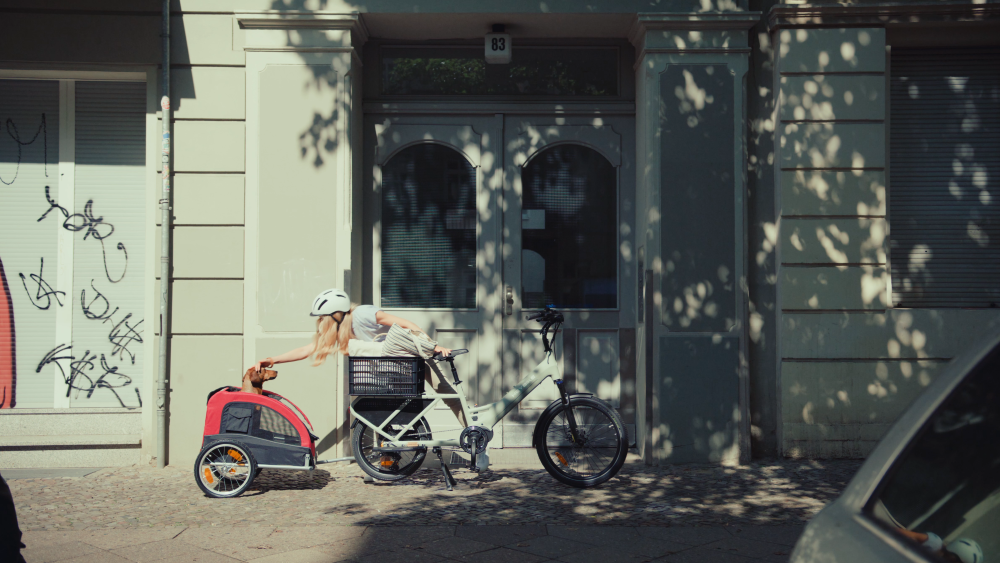

Can I attach a child or pet trailer to the Galaxy X?
Yes. All 5 models in the Galaxy Series support child and pet trailers.
