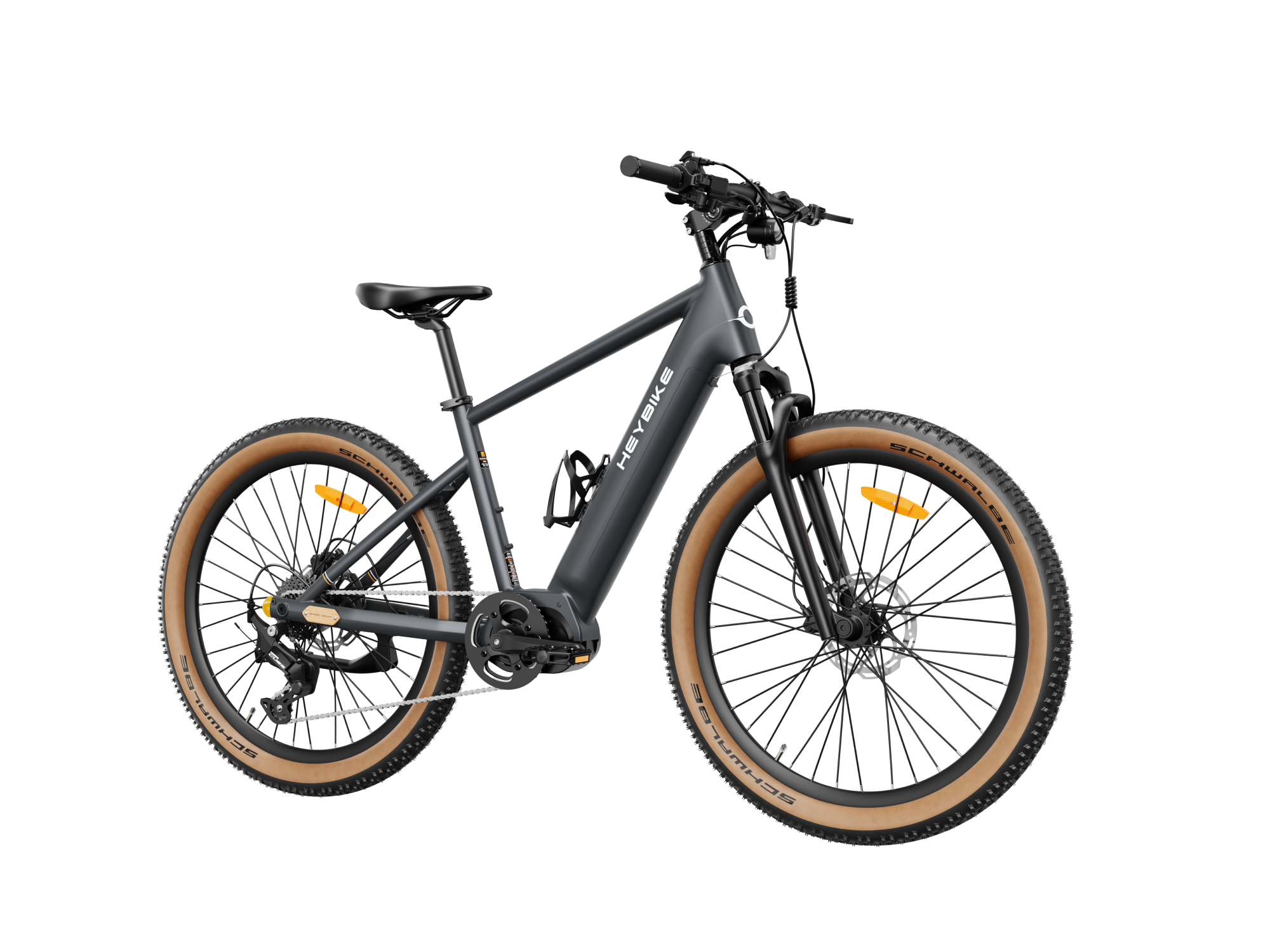

Galaxy M
Trail-Ready eMTB
3 interest-free payments Learn More
Exclusive Offer
Conquer Trails, Built For True Outdoors.
Built for the trails, ready for the thrill—Galaxy M takes you off the beaten path.

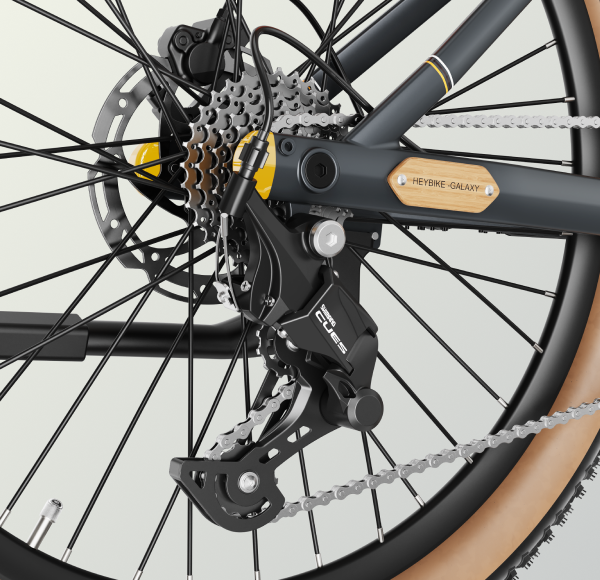

Smooth Shifting By Shimano CUES 9-Speed Drivetrain
Galaxy M is built for adventurous riders who demand both efficiency and control. Equipped with the latest Shimano CUES 9-speed drivetrain, it delivers a silky-smooth shifting experience, even on steep climbs or uneven trails.
Tackle Tough Trails With Confidence
Galaxy Venus Plus System combines a 250W mid-drive motor with up to 100 N·m of torque, delivering powerful yet intuitive pedal assistance even on steep climbs.With a 500Wh battery offering up to 135km of max range, Galaxy M is engineered for long-distance exploration and technical terrain.
Absorbs Bumps. Enhances Stability.
With 120mm of travel, Galaxy M’s front suspension absorbs rocks, roots, and bumps with ease, keeping the ride smooth, stable, and in control — even on the most rugged mountain paths.

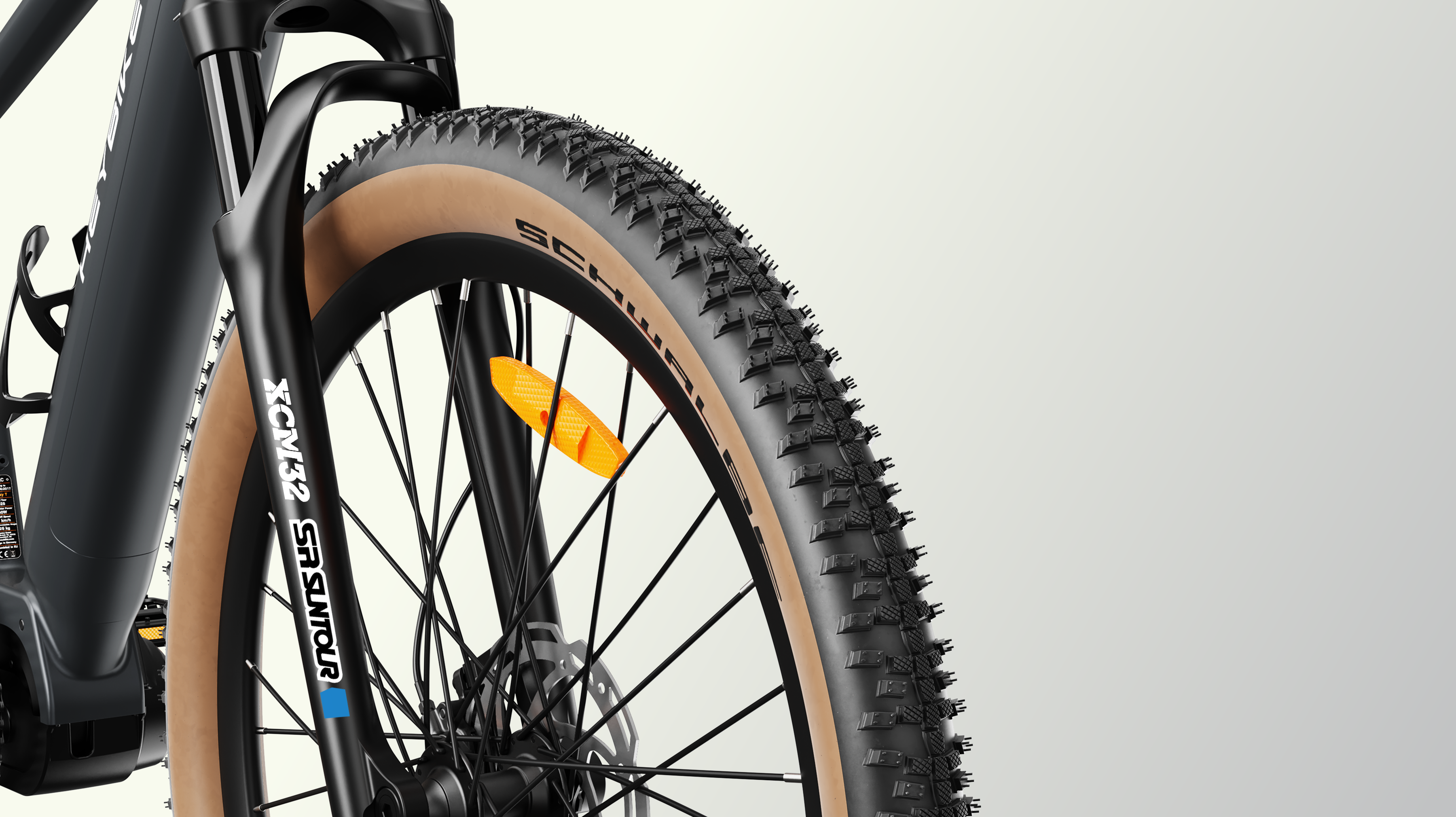

SR Suntour Front Fork
120mm travel suspension fork absorbs bumps and vibrations to reduce hand and arm fatigue. Enjoy a smoother ride whether you're cruising city streets or hitting light trails.

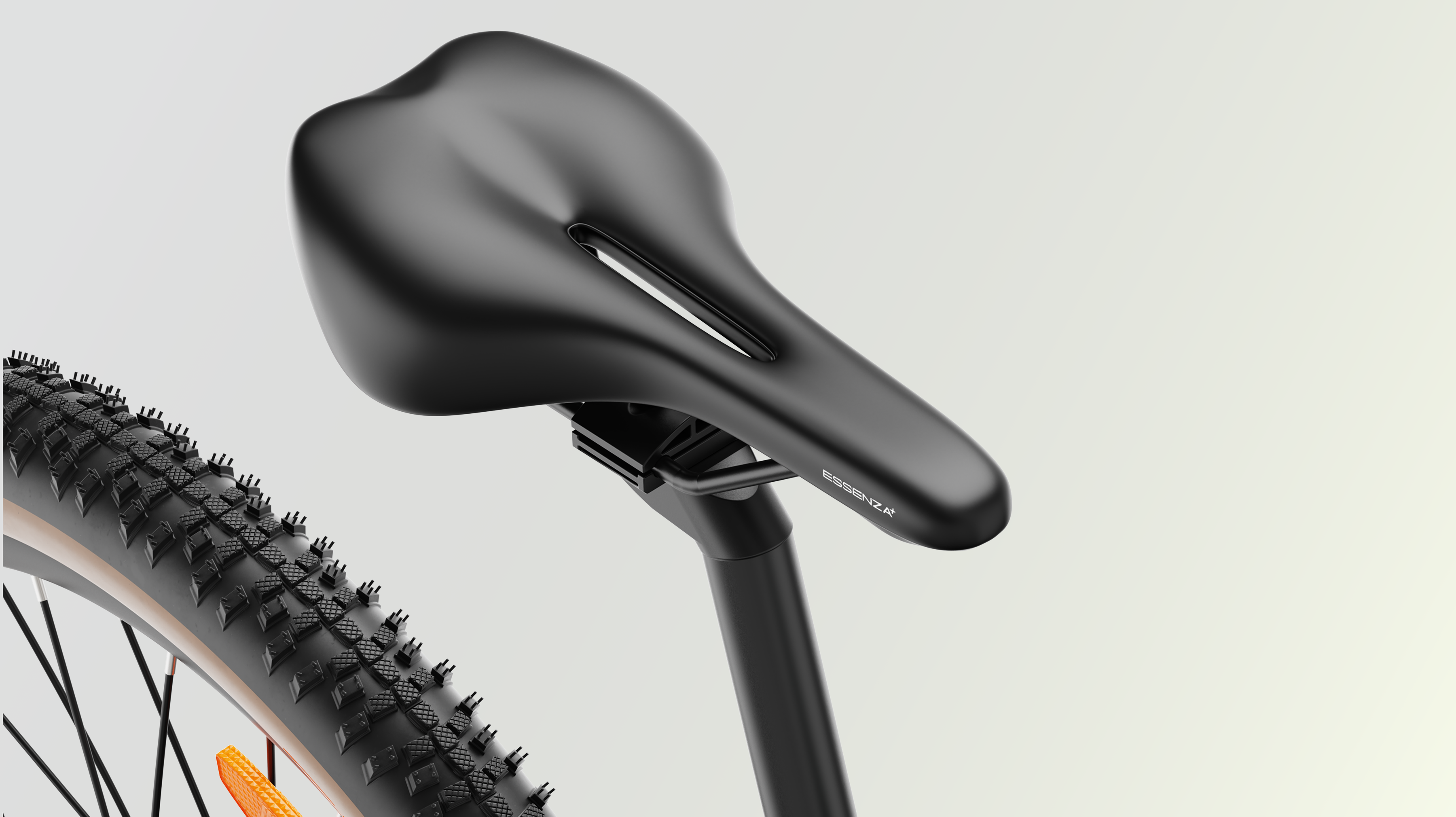

Selle Royal Saddle
Comfort-focused ergonomic design with pressure-relief zones. Perfect for long rides, it keeps you supported and reduces discomfort.

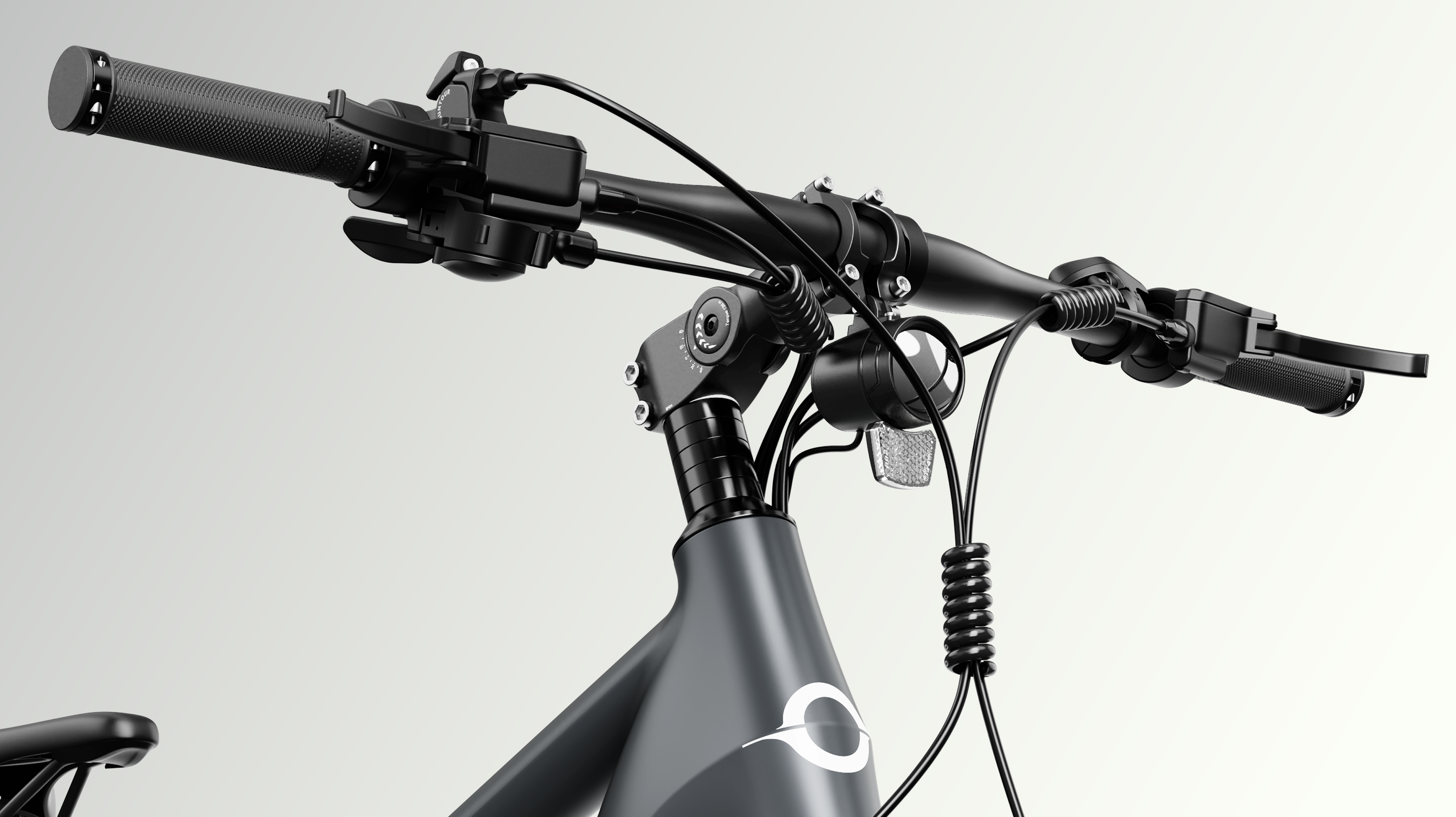

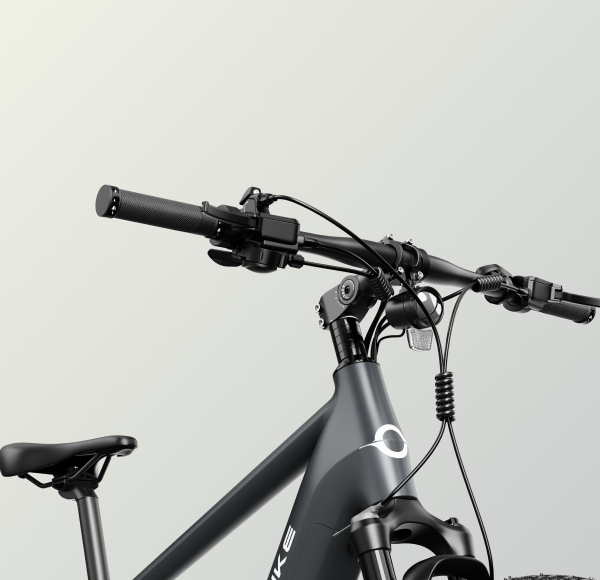

Front Light
The front light ensures visibility and safety during night rides or low-light conditions.

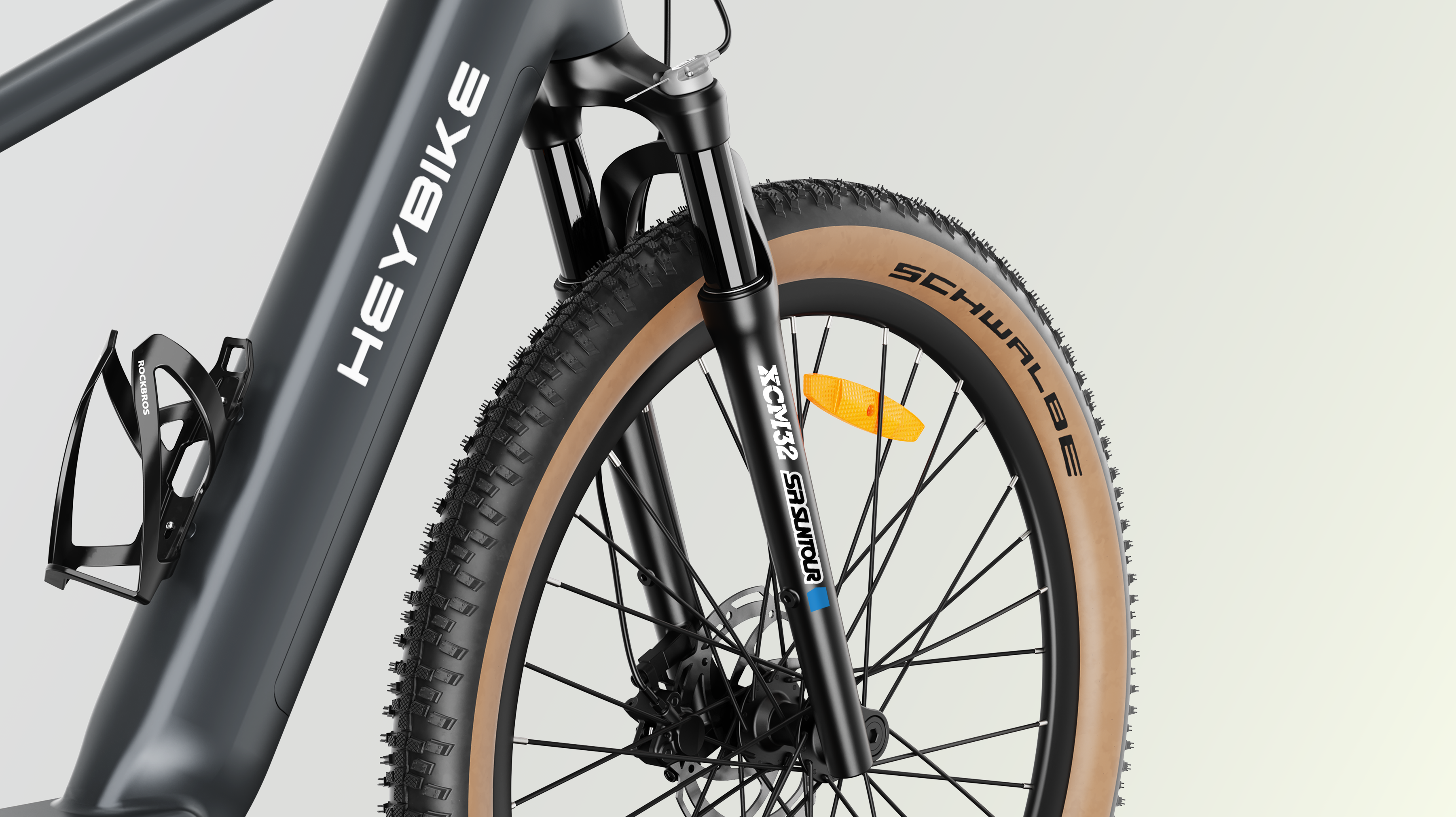

Schwalbe Tyres
Durable, puncture-resistant tyres designed for grip and safety in all conditions. Ideal for both urban roads and rugged paths, giving you confidence wherever you ride.
Easy-Open, Eco-Friendly Packaging
Made from recyclable materials with a side-opening design for simple setup. Includes DIY cutout panels for creative reuse—fun for the whole family.
.%20This%20eMTB%20is%20ideal%20for%20off-road%20adventures.%0A
){kind=link}

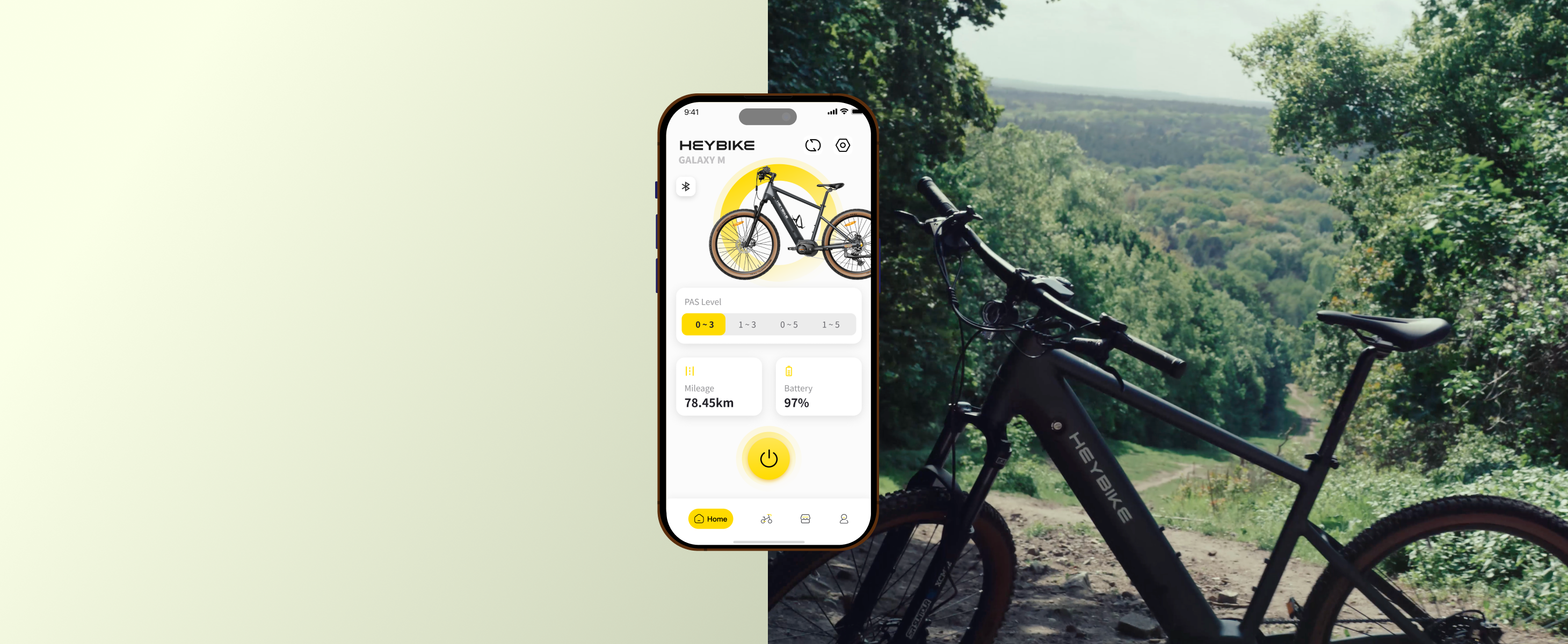

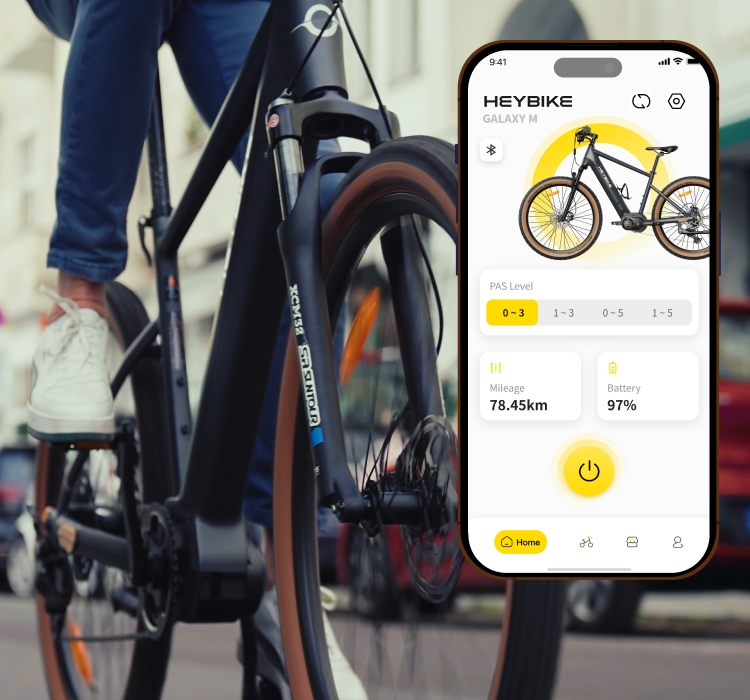

Smart APP
Your great rides deserve a diary! Connect your bike to the HEYBIKE app and create an impressive mileage log!
Download on the APP Store

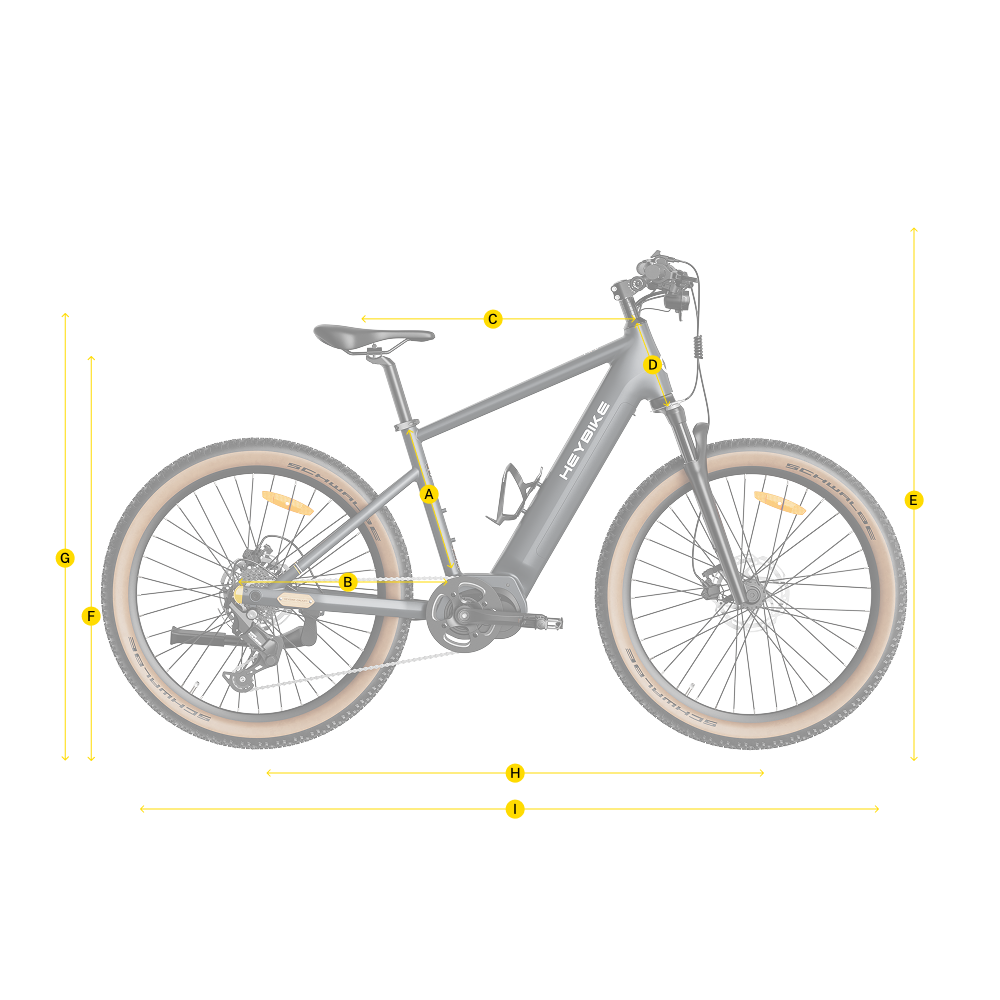

- Geometry
- Specifications
- What's in the box?
| Description | Size (Inch) | |
|---|---|---|
| A | Seat tube | S: 17" / M: 19" /L: 21" |
| B | Chainstay | 18.7" |
| C | Effective Top Tube | 23.2" |
| D | Head Tube | 7.1" |
| E | Handlebar Height | 43.5" |
| F | Minimum Seat Height | 30.7" |
| G | Maximum Seat Height | 36.6" |
| H | Wheelbase | 47.0" |
| I | Total Length | 76.0" |
ELECTRONICS
-
Motor
36V 250W Mid Motor (Venus Plus) -
Sensor Type
Torque Sensor -

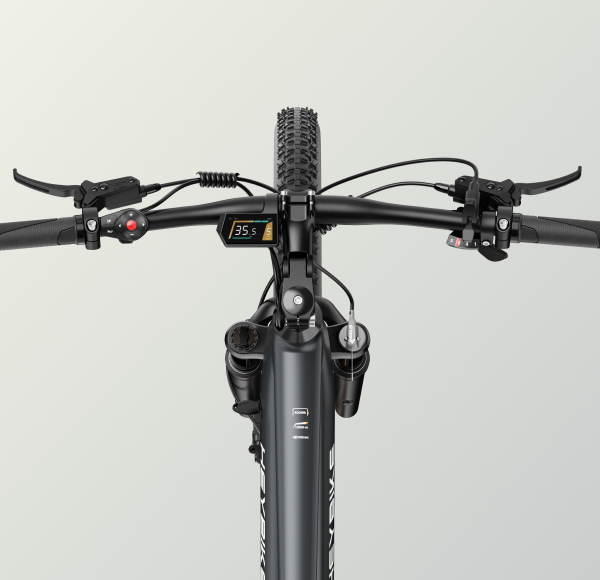

Display
Color LCD Display -
Battery
500Wh Lithium Battery -
Charger
42V 100-240V 2A -
Lights
Front white LED, Rear red LED,Turning light -
Controller
Smart Controller -
APP
Heybike App Bluebooth
COMPONENTS
-
Frame
6061 Aluminum Alloy 17"/19"/21" -
Tyres
Schwalbe 27.5"×2.35" SMART SAM/Bronze Sidewall -
Speed Gears
Shimano CUES 9SP 11-41T -
Brake
Shimano MT-200 Hydraulic Disc Brakes -
Front Fork
SR Suntour XCM32 DS HLO 15AH2 27.5 T:120 -
Handlebar
Promax HB-3188DB 680mm -
Chain
KMC eGlide -
Saddle
Sello Royal Mtb saddle -
Seat post
Zoom SPS-521 Aluminium alloy -
Pedal
HF-808 Aluminum alloy
PERFORMANCE
-
Max speed
25km/h -
Max Torque
100 N·m -
Range
Up to 135 km with PAS Mode -
Recharging Time
6-8h -
Weight
24 kg -
Max. Load
125kg

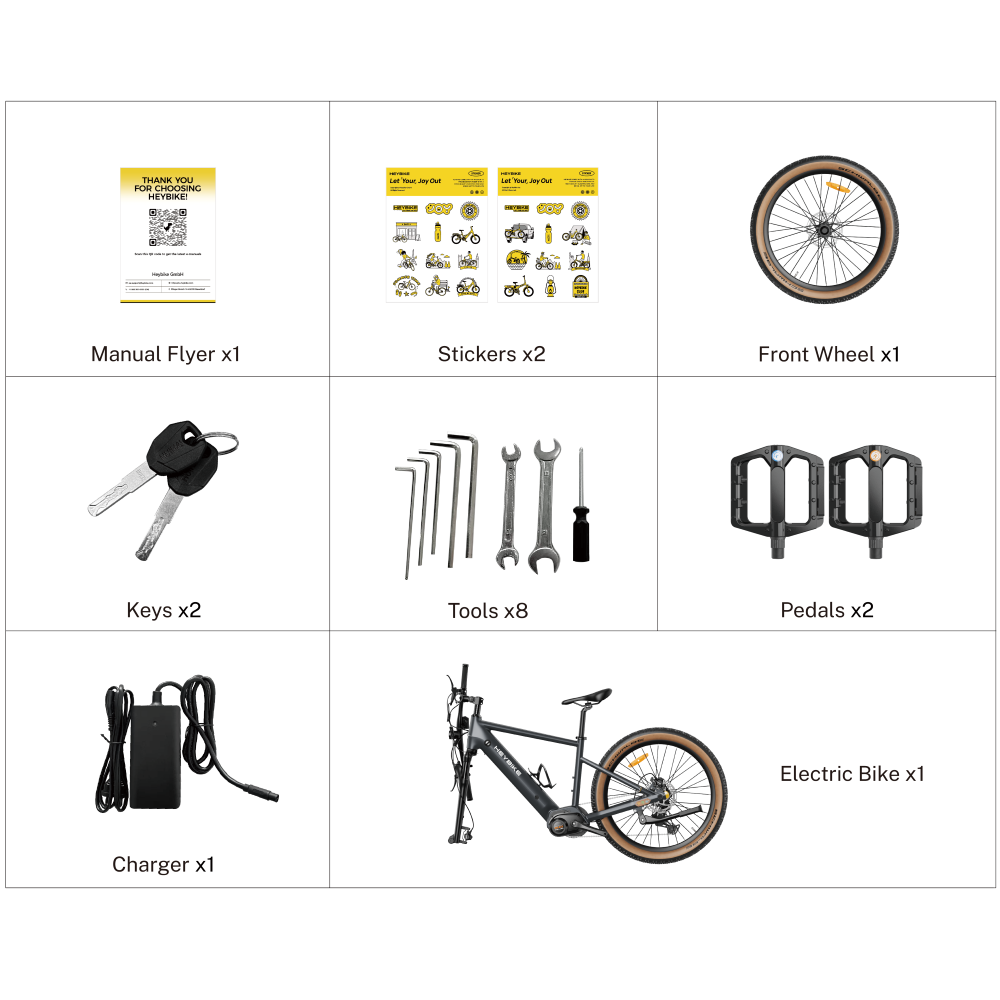

| Item name & Quantity | |
|---|---|
| A | Manual Flyer x1 |
| B | Stickers x2 |
| C | Front Wheel x1 |
| D | Keys x2 |
| E | Tools x8 |
| F | Pedals x2 |
| G | Charger x1 |
| H | Electric Bike x1 |
FAQ
What type of motor does Galaxy M use?
It features a powerful mid-drive motor designed for off-road performance.
What makes Galaxy M suitable for trails?
It has 120mm travel hydraulic front suspension for handling rugged terrain.
What are the advantages of Shimano CUES transmission shifting components?
They offer smoother gear shifts, higher durability, and better trail performance.
Is Galaxy M good for long-distance rides?
Yes, it’s built for endurance and performance on long trail rides.
Is the battery removable?
Yes, the battery is fully removable for convenient charging.
Does Galaxy M support a child or pet trailer?
Yes, all Galaxy models support baby or pet trailers.
